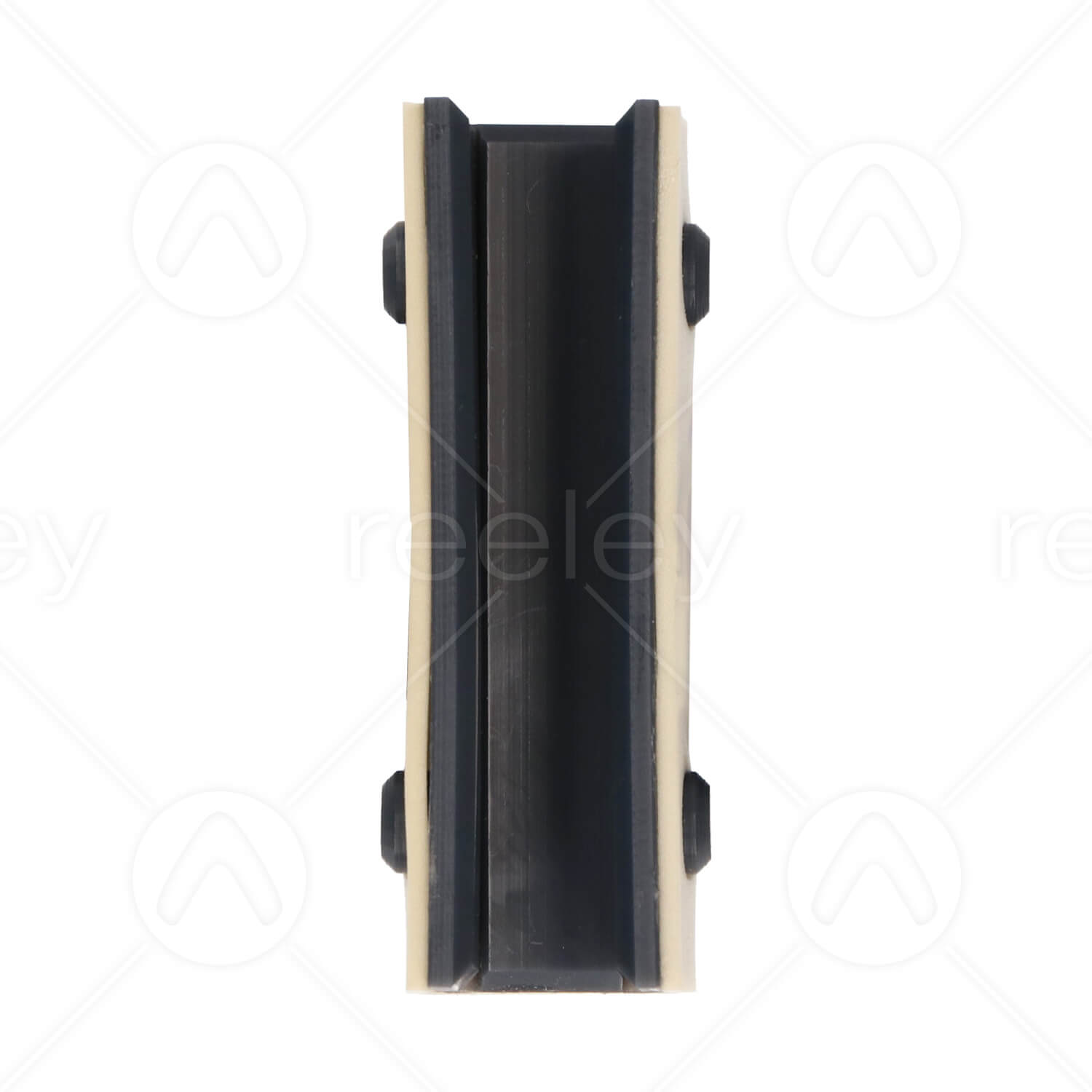

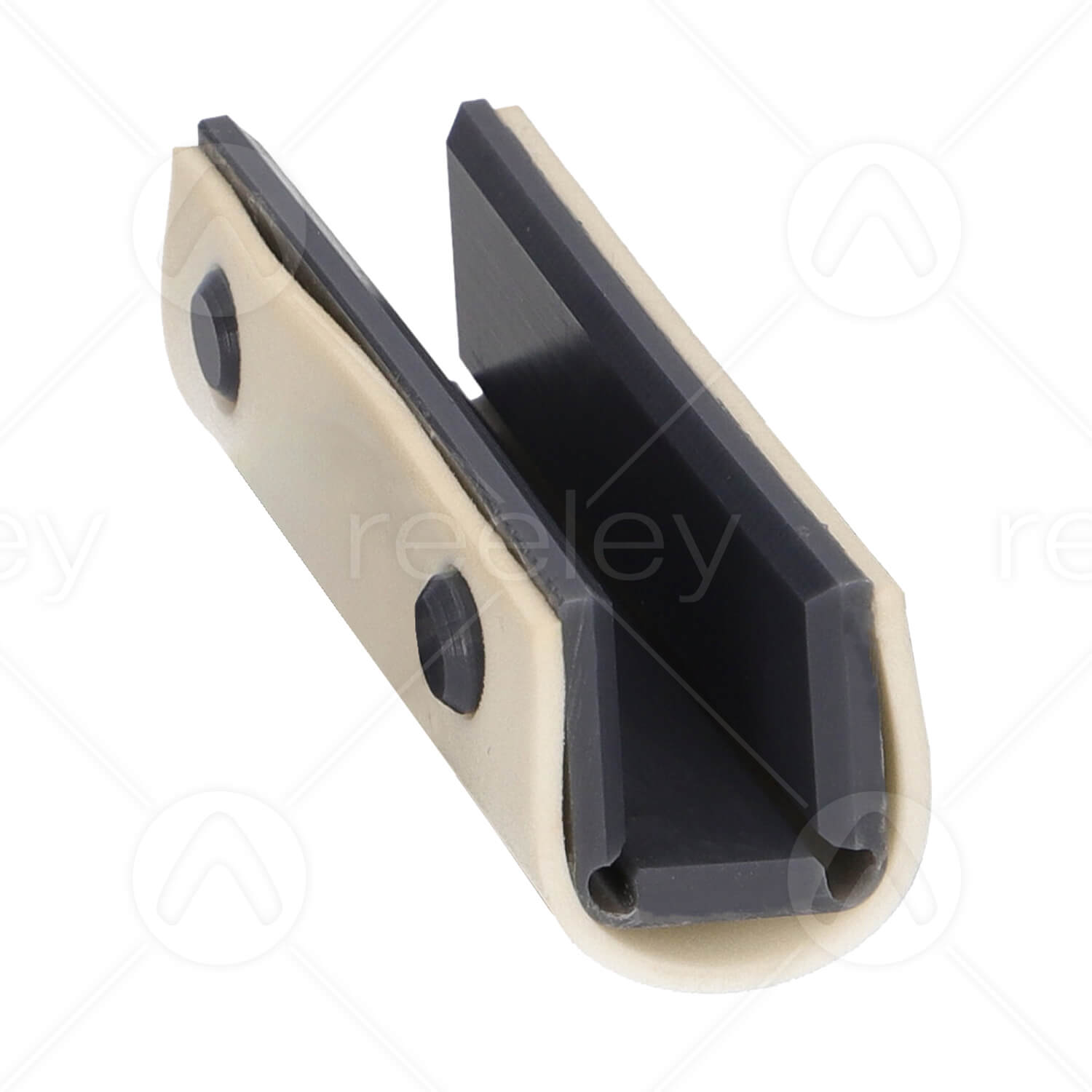

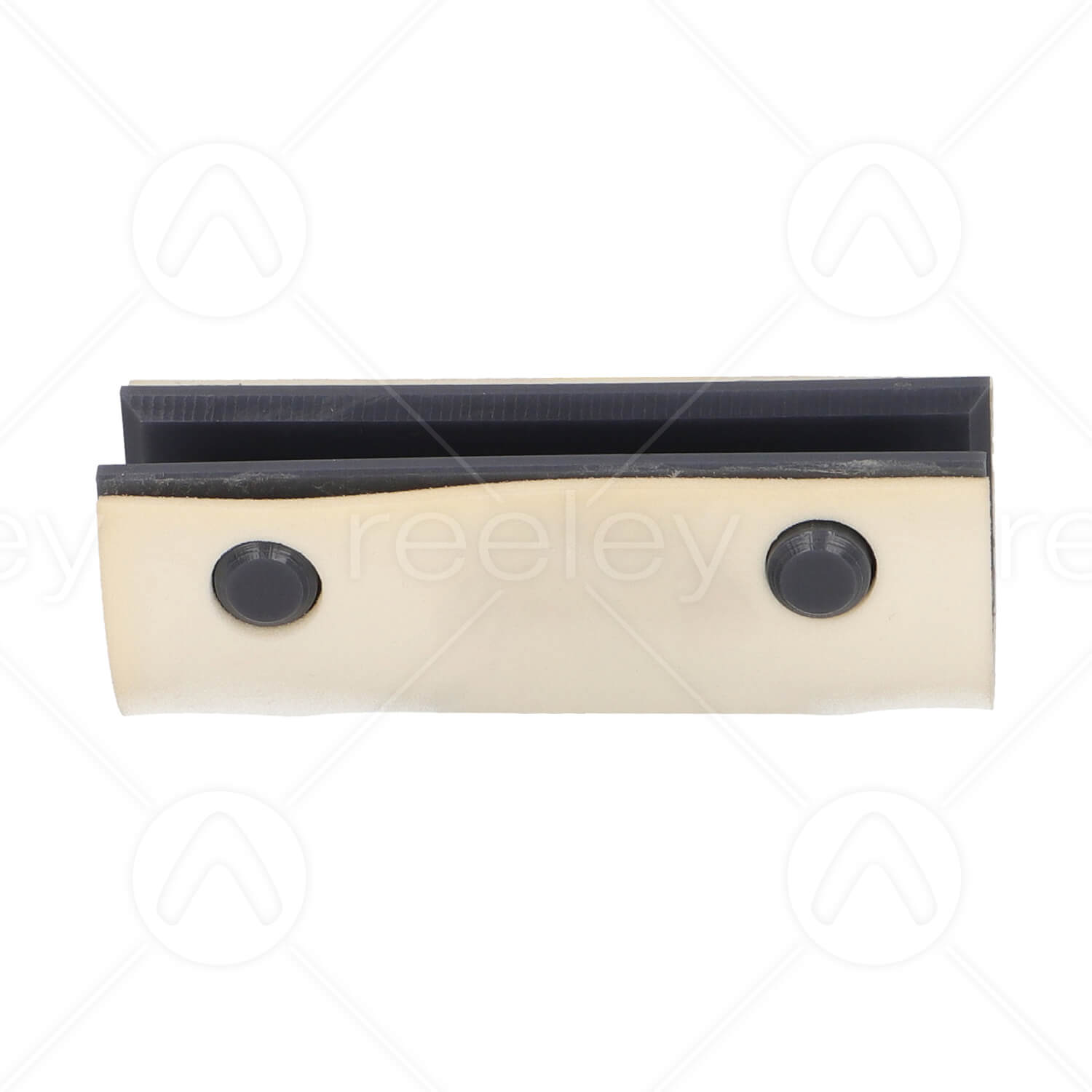

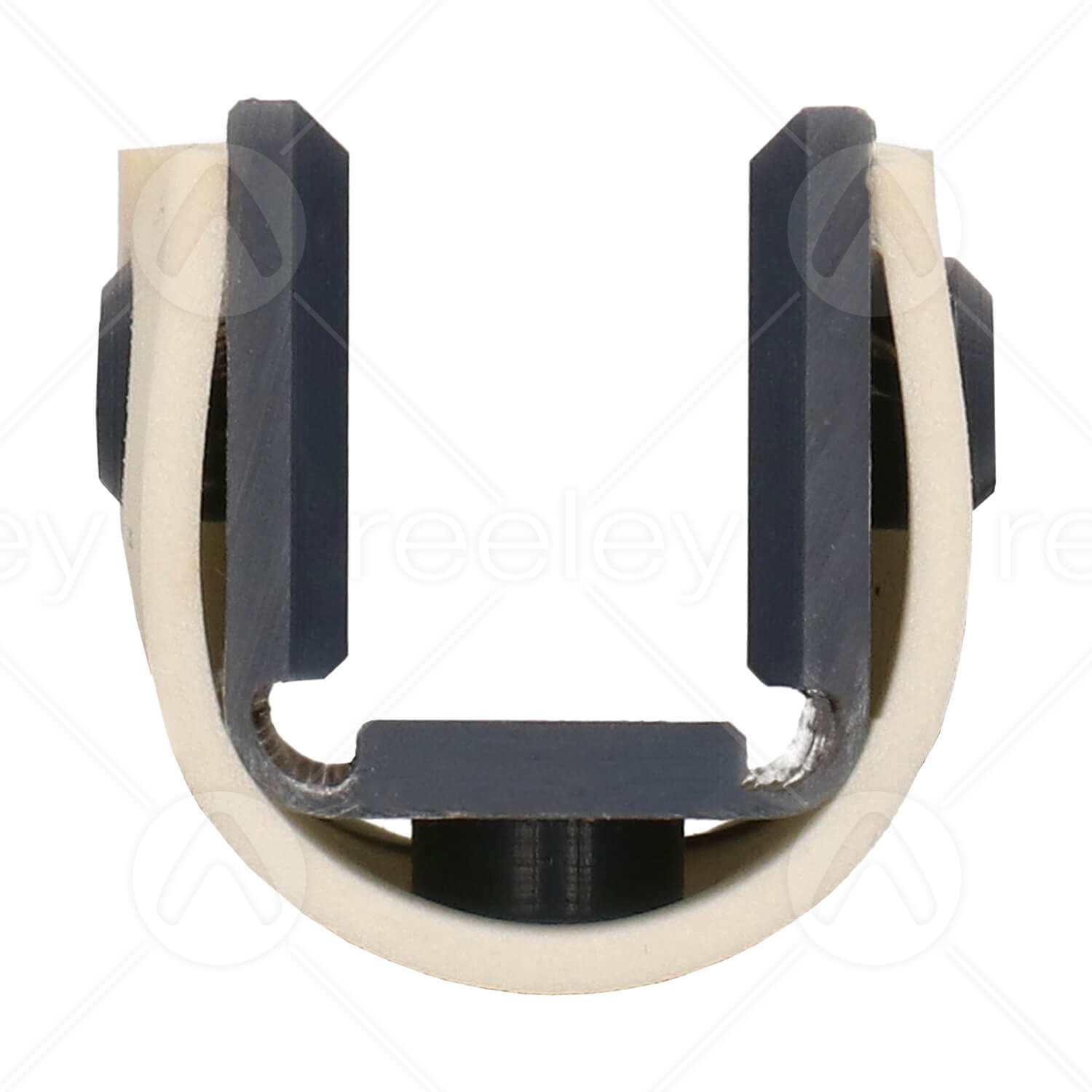

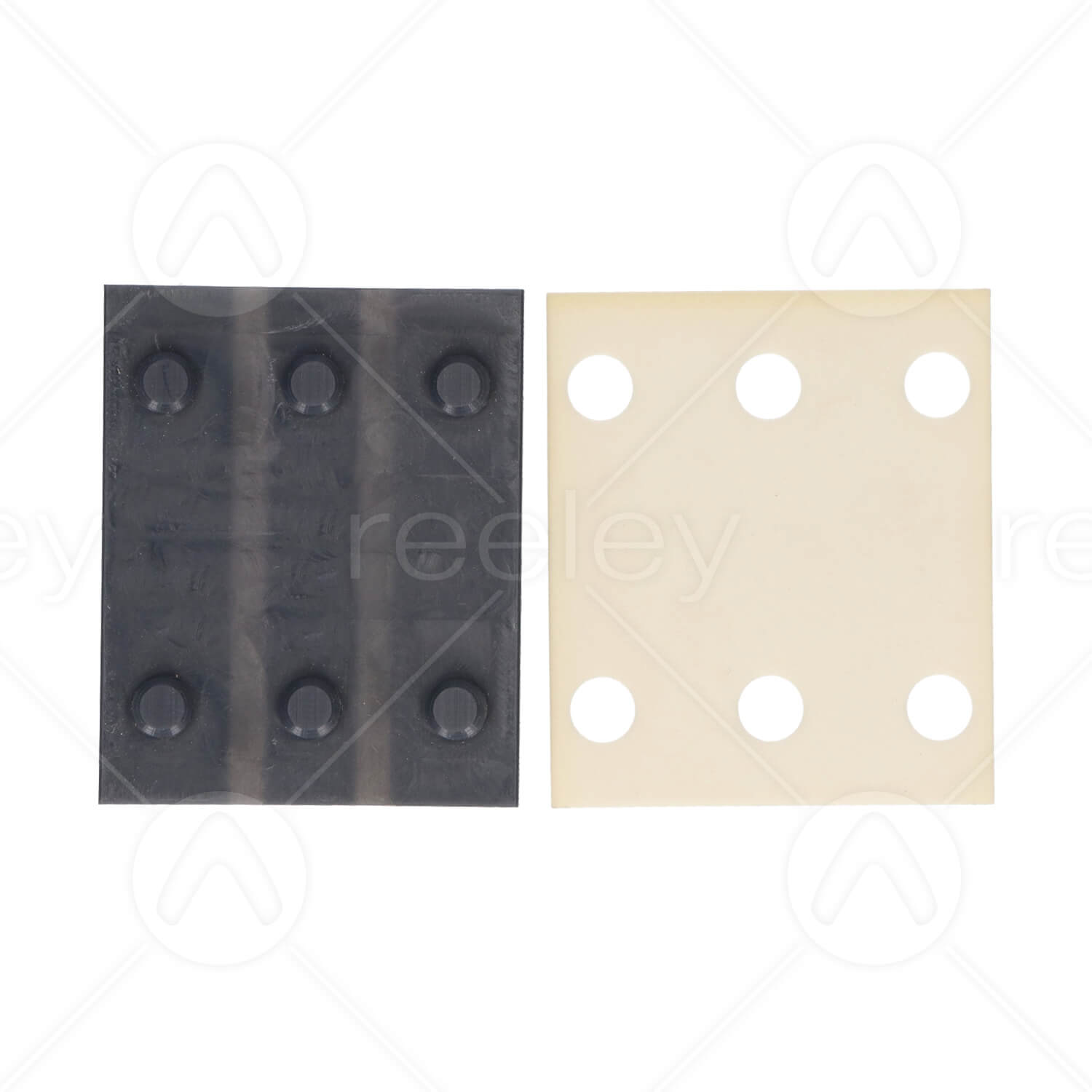

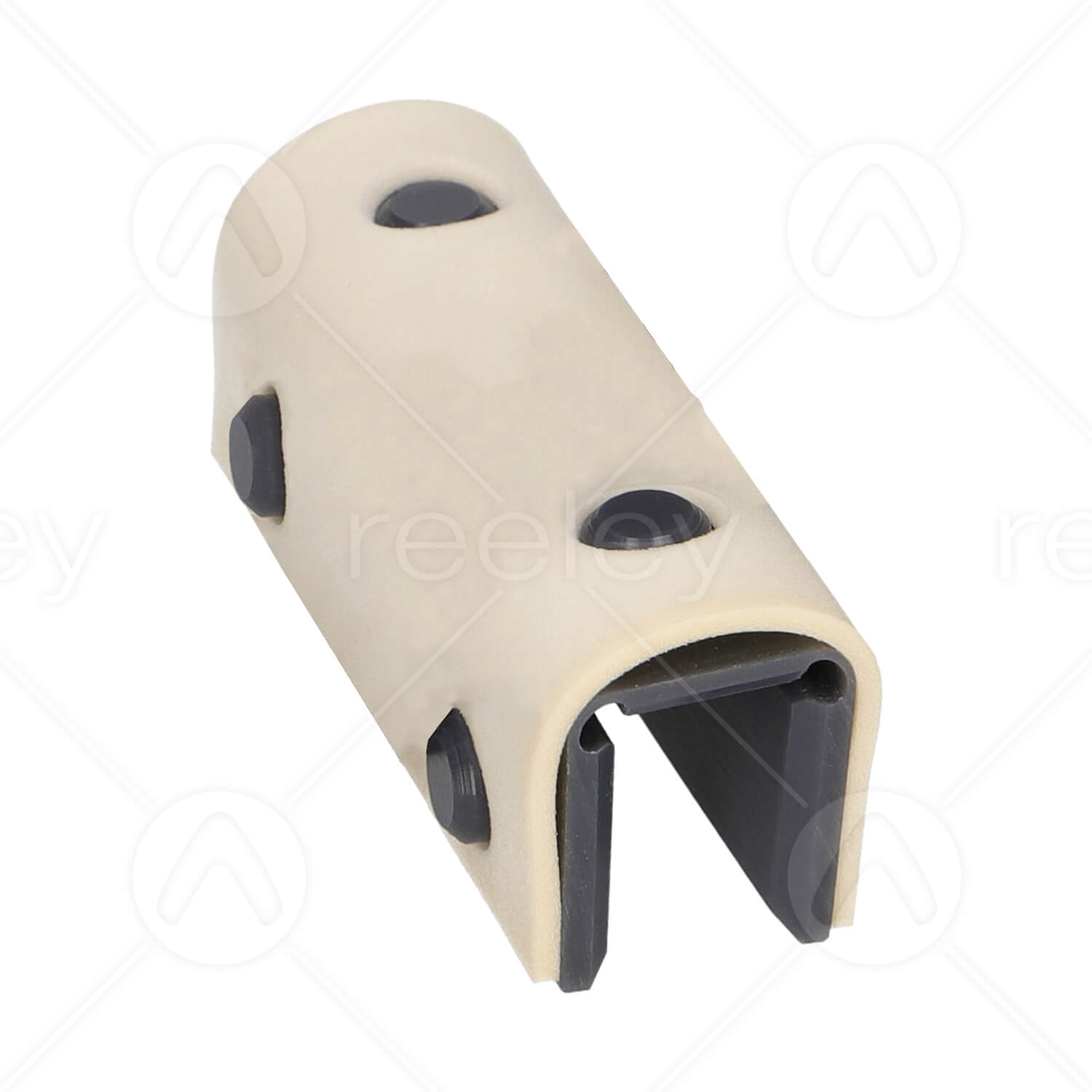

96mm Long x 25mm Wide (29mm with Cell Insert) Polyethylene Guide Shoe Liner to Suit 15mm Guide Rail
£28.00
Dimensions: 96mm Long x 25mm Wide (29mm with Cell Insert) x 30mm Deep (32mm with Cell Insert)
Comments: Made from Polyethylene, Which is More Hard Wearing, Runs at Faster Speeds (2.5 m/s) and Does Not Require Lubrication.
2 Studs on Each Side and 2 Studs on the Back.
Alternative Rail Sizes:
- 9mm Guide Rail Part No. 77020
- 10mm Guide Rail Part No. 77042
- 16mm Guide Rail Part No. 77022
Available without Cell Insert:
- 5mm Guide Rail Part No. 10124PE
- 10mm Guide Rail Part No. 10125PE
- 16mm Guide Rail Part No. 10133PE
Suits Schindler Guide Shoe Part No. 77021
