Inserts & Pins

EXPRESS

1/2" Concentric Pin to Suit D1132 on R43 Assembly

Part Number: L1275

£95.00

HOLLISTER WHITNEY

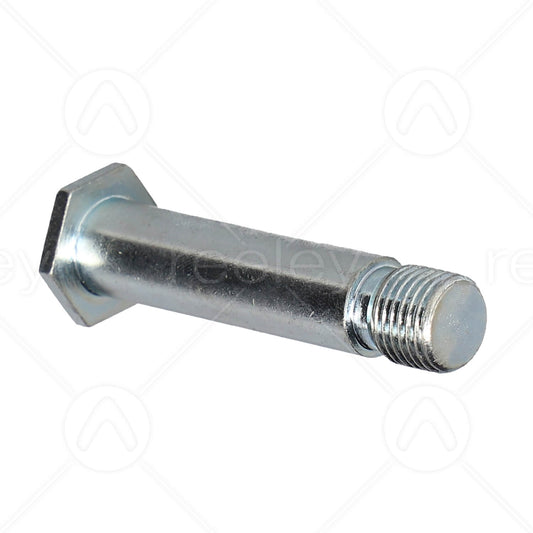

1/2" UNF Pin

Part Number: 99978

£17.00

Dimensions:

61.5mm Long x with 1/2" UNF x 13mm Thread

HOLLISTER WHITNEY

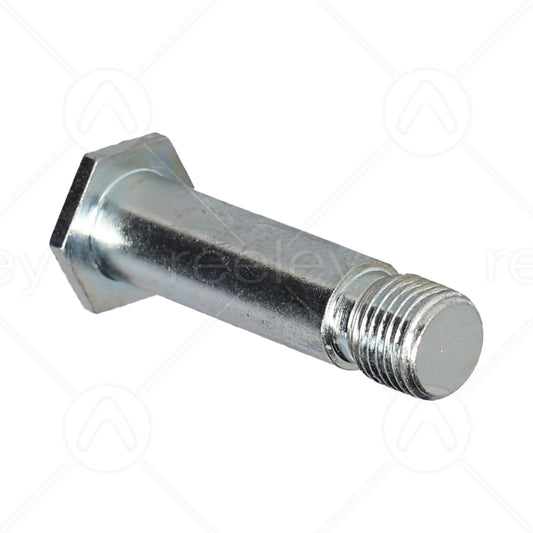

1/2" UNF Pin

Part Number: 99977

£17.00

Dimensions:

52.5mm Long x with 1/2" UNF x 13mm Thread

OTIS

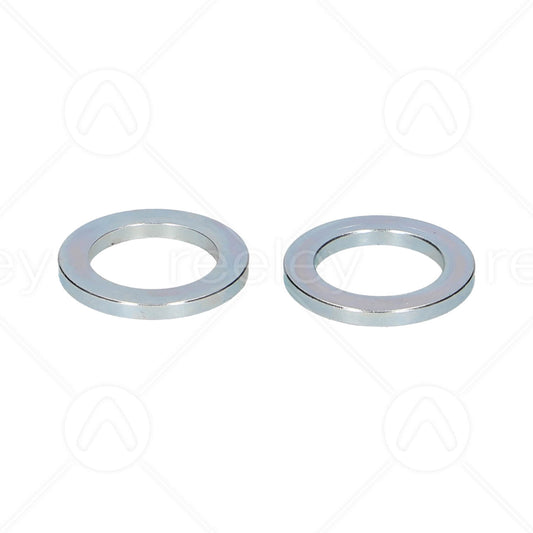

2 Packing Washers

Part Number: 20234

£1.50

Dimensions:

30mm OD x 20mm ID x 3mm Thick

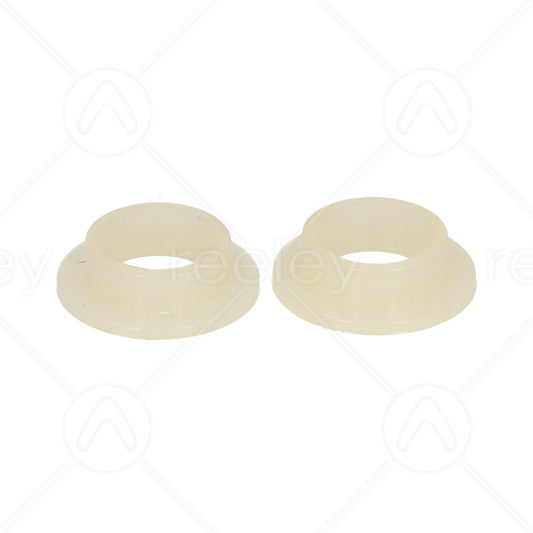

DOVER, HAMMOND & CHAMPNESS

2 Piece Nylon Bush Set

Part Number: 11309

£5.00

Dimensions:

22mm OD x 6mm Wide x 12.7mm ID

DOVER, HAMMOND & CHAMPNESS

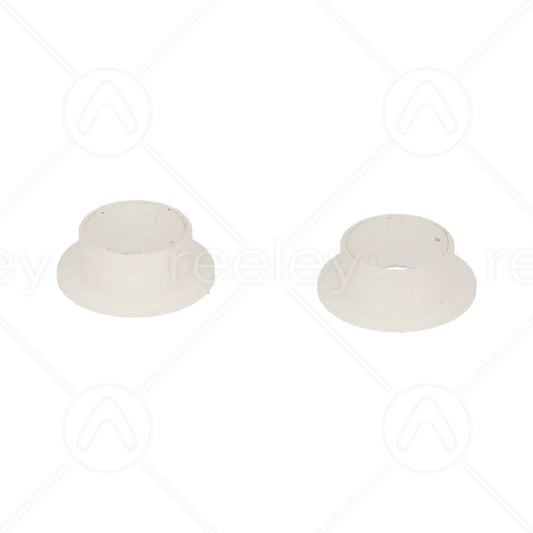

2 Piece Nylon Bush Set

Part Number: 11310

£5.00

Dimensions:

11mm OD x 4mm Wide x 6.5mm ID

OTIS

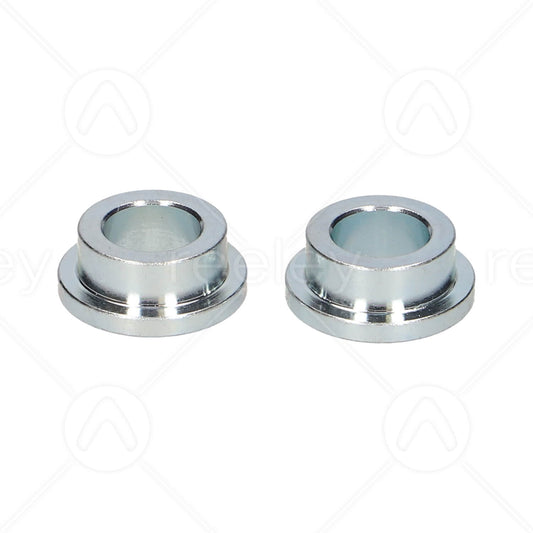

2 Top Hats

Part Number: 20235

£5.00

Dimensions:

1/2" (12.7mm) ID

KONE, MARRYAT & SCOTT

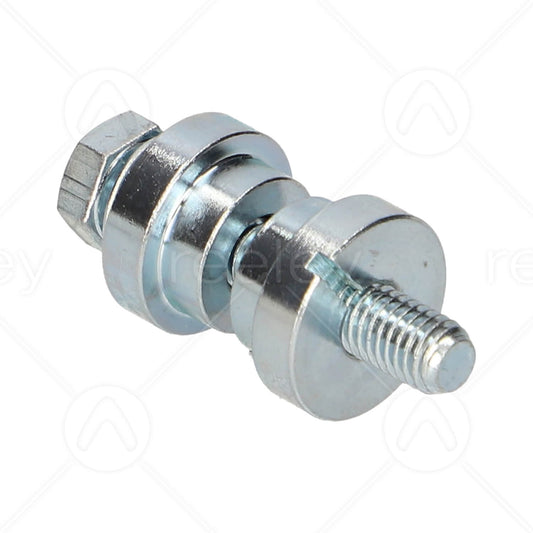

2 Top Hats (1 Plain, 1 Threaded) and M8 Bolt

Part Number: 11108

£8.00

Dimensions:

50mm Long x 22mm OD x M8 ID

EVANS

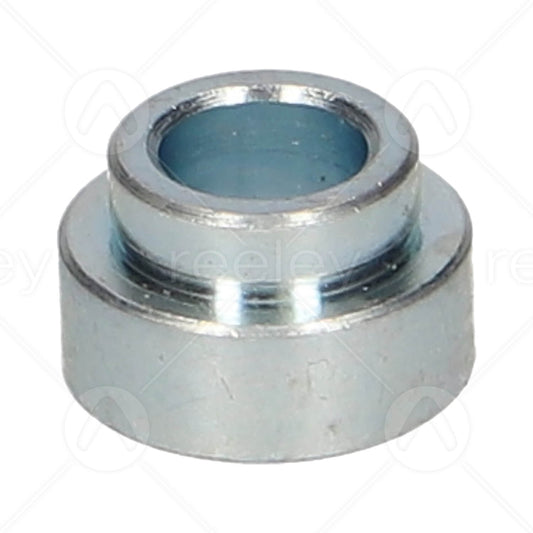

8mm Plain Insert

Part Number: 12557

£3.75

Dimensions:

8mm ID

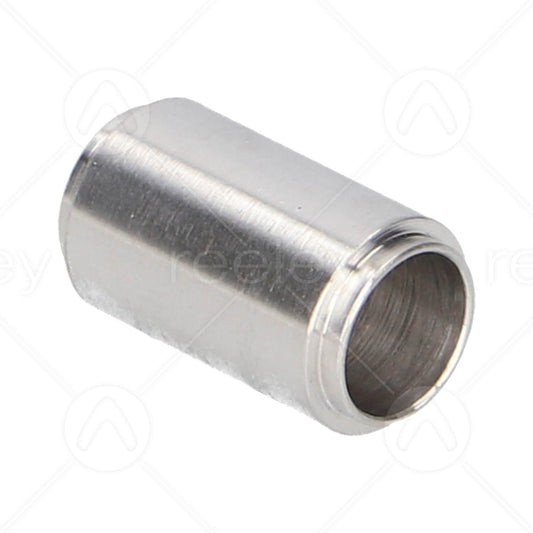

HAMMOND & CHAMPNESS, HOLLISTER WHITNEY

Aluminium Sleeve

Part Number: 99980

£12.50

Dimensions:

29mm Long x 17mm OD x 12.7mm (1/2") ID

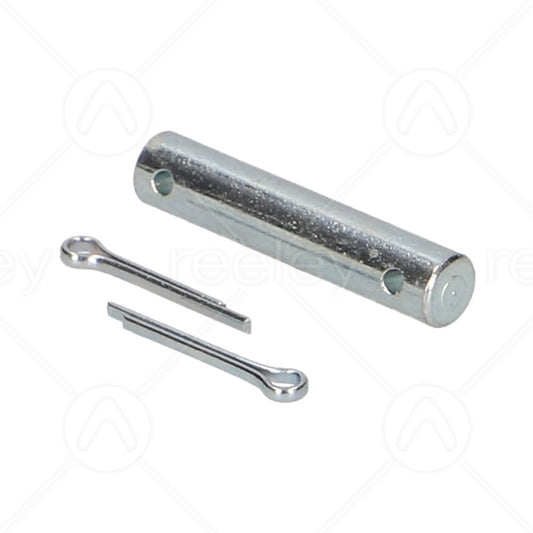

OTIS

Axle

Part Number: 20204

£8.00

Dimensions:

32mm Long x 6mm Wide

EXPRESS

Axle Pin for Limit Roller

Part Number: 16109

£12.50

Dimensions:

49mm Long x 9.5mm OD with 2 x 2.5mm Holes

KEIGHLEY

Brass Insert

Part Number: 30001

£20.00

Dimensions:

19mm OD x 10mm ID x 15mm Wide

ACLA

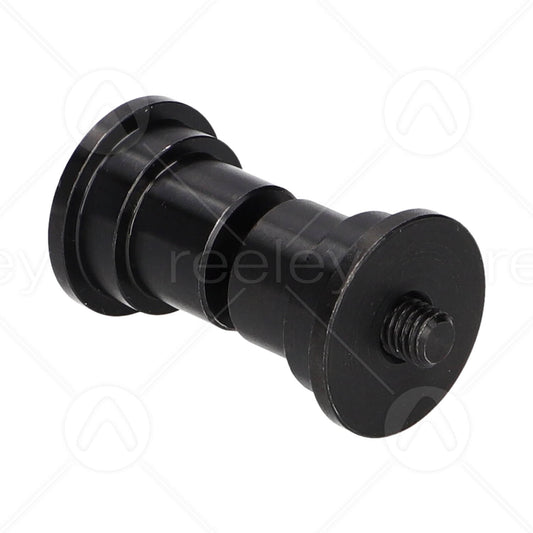

Concentric Pin & Top Hat

Part Number: 10206

£16.00

ORONA

Conversion Kit

Part Number: 11719

£12.50

Dimensions:

35mm Long x 15mm OD with M12 Thread

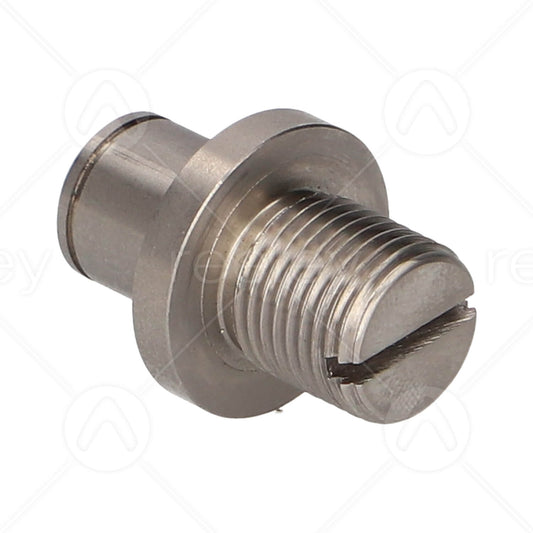

ORONA

Conversion Kit

Part Number: 11705

£14.00

SEMATIC

Door Operator Unlocking Pin (Eccentric)

Part Number: 44089

£27.00

Dimensions:

45mm Long x 12mm OD with M5 x 15mm Long Eccentric Thread

HAMMOND & CHAMPNESS

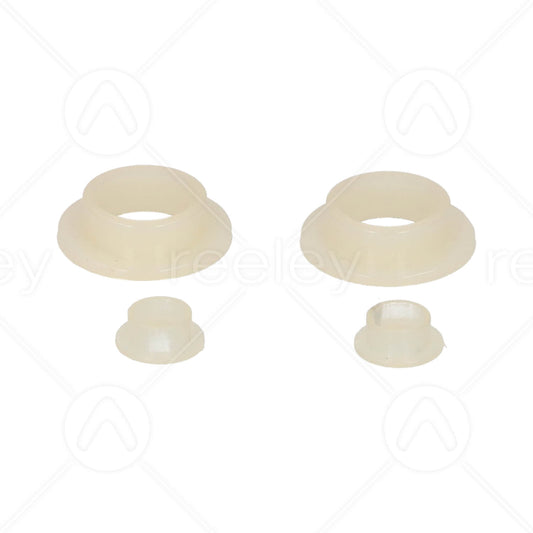

Dover 4 Piece Nylon Bush Set - DC-68

Part Number: 11308

£7.50

CEITA

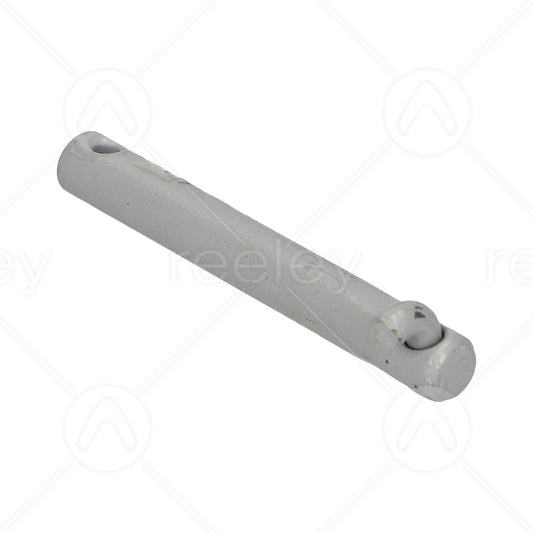

Fixing Pin (Left Hand)

Part Number: 35017

£30.00

Dimensions:

95mm Long x 12mm Wide with 5mm Hole

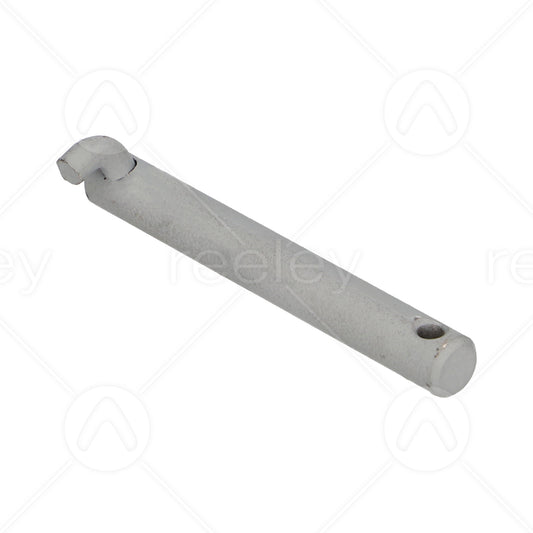

CEITA

Fixing Pin (Right Hand)

Part Number: 35016

£30.00

Dimensions:

95mm Long x 12mm Wide with 5mm Hole

PROPBROOK

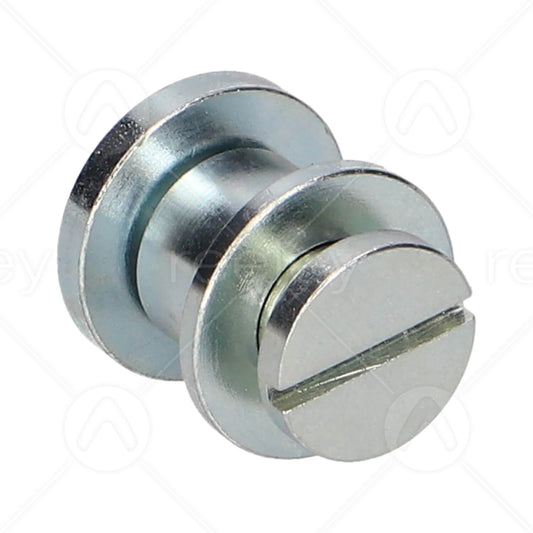

Hanger Roller Conversion Kit

Part Number: 22809

£22.50

Dimensions:

26mm Long

SEMATIC

Landing Door Emergency Release Pins (Set of 2)

Part Number: 44047

£12.00

Dimensions:

Pin 1 - Thread M6 x 17mm x 58mm Long
Pin 2 - Thread M6 x 20mm x 55mm Long

SEMATIC

Lock Release Pin

Part Number: 44099

£12.50

Dimensions:

6mm OD x 52.5mm Total Length with M4 x 10mm Thread

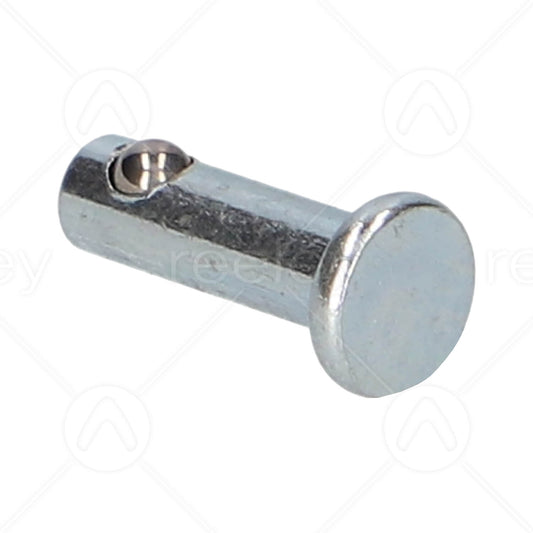

FERMATOR

Locking Pin

Part Number: 18828

£40.00

Dimensions:

21mm Long

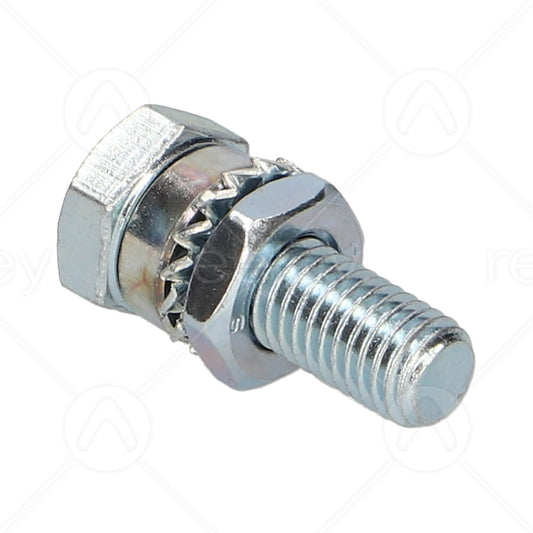

THYSSEN

M10 Bolt, Spacer, Washer & Nut

Part Number: 19223

£6.00

Dimensions:

31mm Long with M10 Thread

OTIS

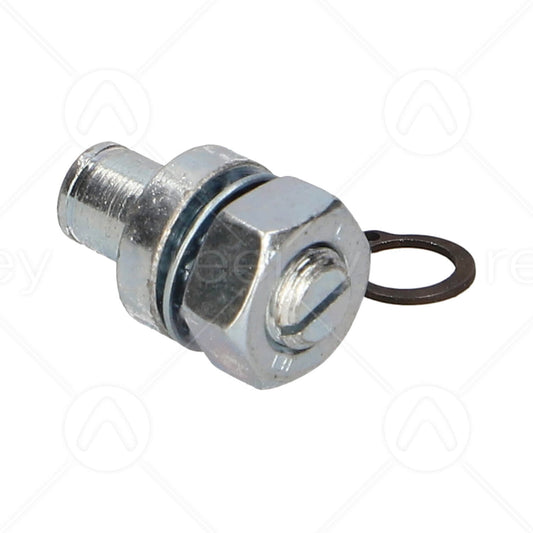

M10 Concentric Pin

Part Number: 21965

£8.00

Dimensions:

M10 Thread x 13mm Long

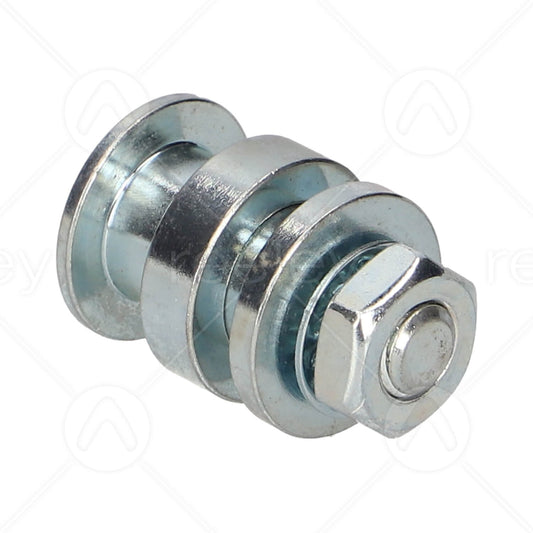

WADSWORTH

M10 Concentric Pin

Part Number: 22442

£18.00

Dimensions:

M10 Thread

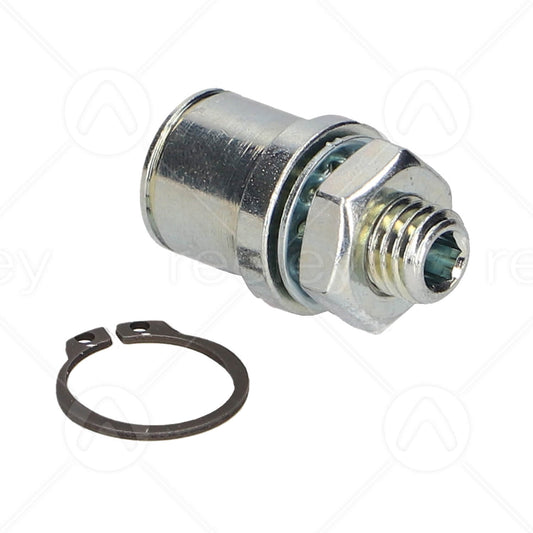

DUPAR & DEWHURST, HAMMOND & CHAMPNESS, PROPBROOK

M10 Concentric Pin

Part Number: 11227

£9.00

Dimensions:

M10 Thread x 17mm OD

DUPAR & DEWHURST

M10 Concentric Pin in Stainless Steel

Part Number: 17708

£14.00

Dimensions:

39mm Long x M10 Thread

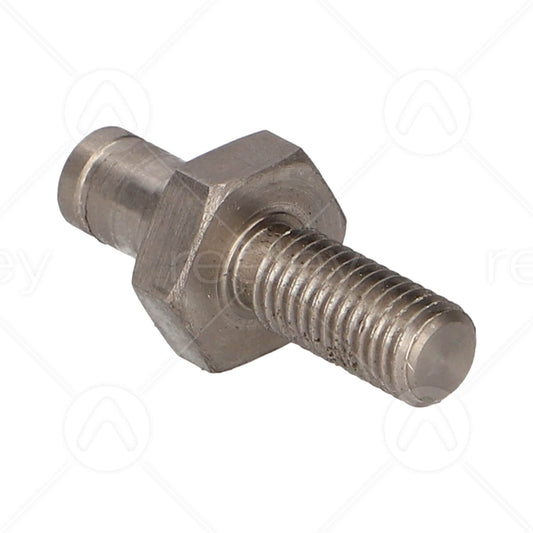

MISCELLANEOUS

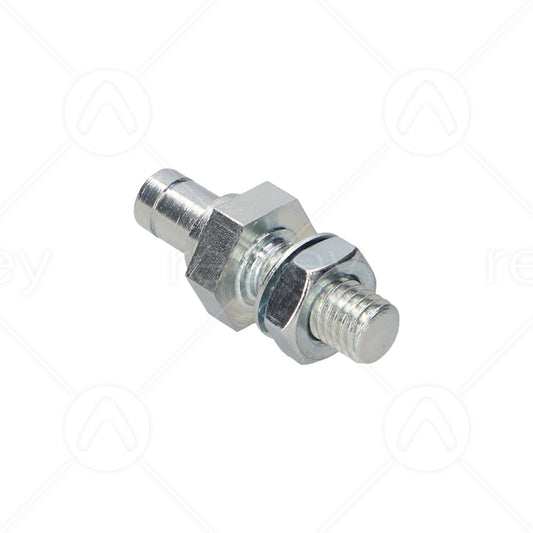

M10 Concentric Pin to Suit 10mm Bearing (6000)

Part Number: 90020

£12.50

Dimensions:

46mm Long x 19mm Wide Hexagon x 23mm Long Thread

HAMMOND & CHAMPNESS

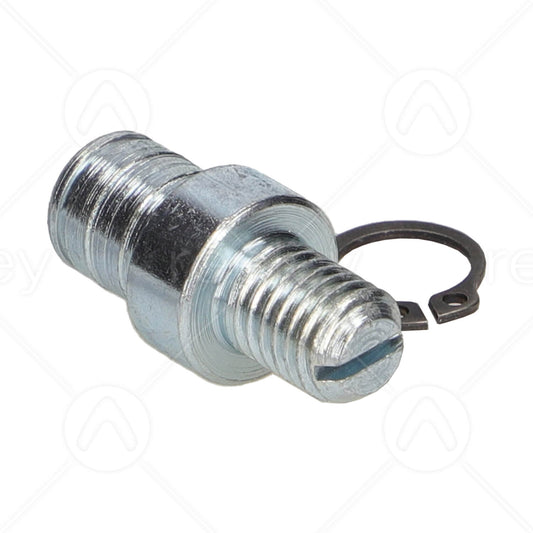

M10 Concentric Pin to Suit 12mm Bearing

Part Number: M1012C

£5.00

Dimensions:

M10 Concentric Pin to Suit 12mm Bearing

MISCELLANEOUS

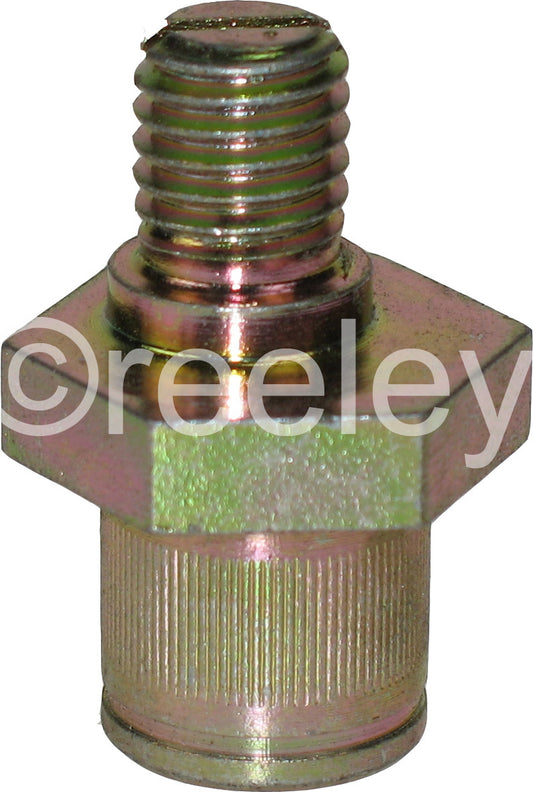

M10 Concentric Pin to Suit 15mm Bearing

Part Number: M1015C

£5.00

Dimensions:

M10 Concentric Pin to Suit 15mm Bearing

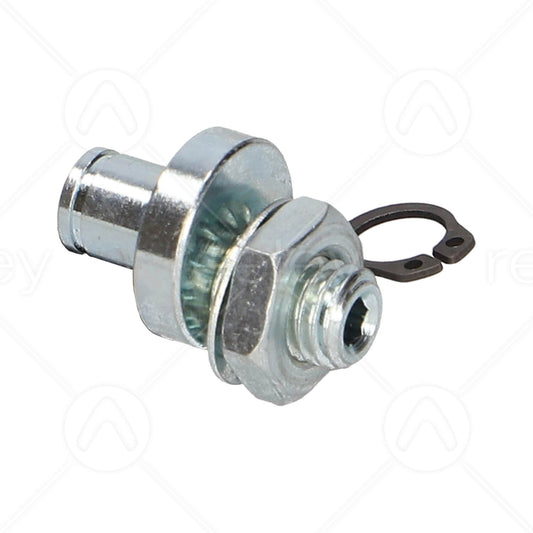

OTIS

M10 Eccentric Pin

Part Number: 21966

£9.00

Dimensions:

M10 Thread x 13mm Long

DUPAR & DEWHURST, HAMMOND & CHAMPNESS, PROPBROOK

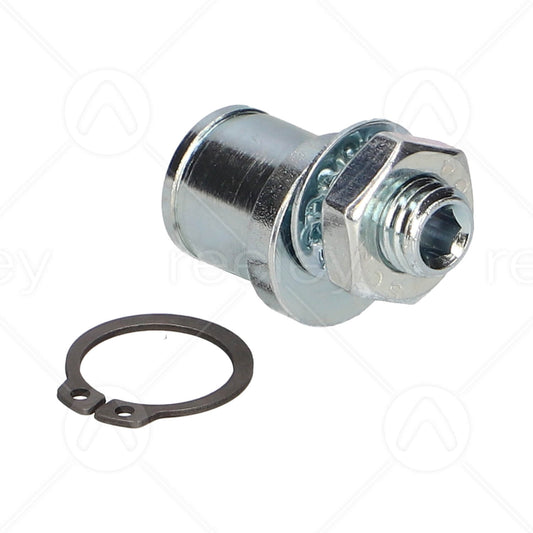

M10 Eccentric Pin

Part Number: 11228

£12.50

Dimensions:

M10 Thread x 17mm OD

MISCELLANEOUS

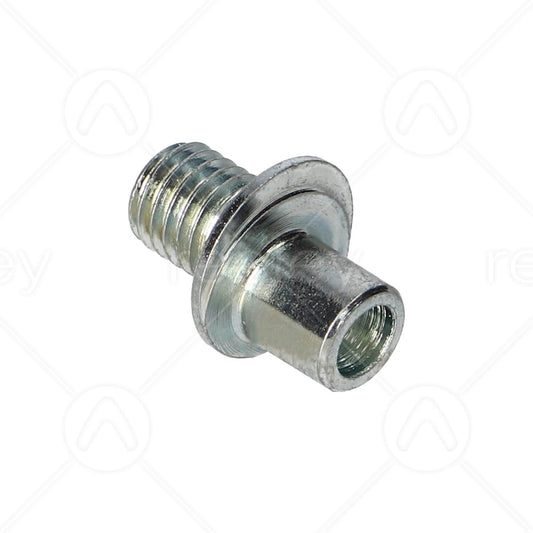

M10 Eccentric Pin to Suit 10mm Bearing

Part Number: M1010E

£5.00

Dimensions:

M10 Eccentric Pin to suit 10mm Bearing

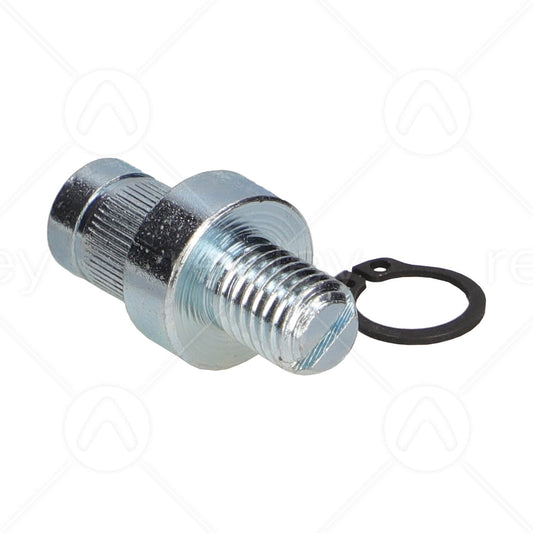

HAMMOND & CHAMPNESS

M10 Eccentric Pin to Suit 12mm Bearing

Part Number: M1012E

£5.00

Dimensions:

M10 Eccentric Pin to suit 12mm Bearing

MISCELLANEOUS

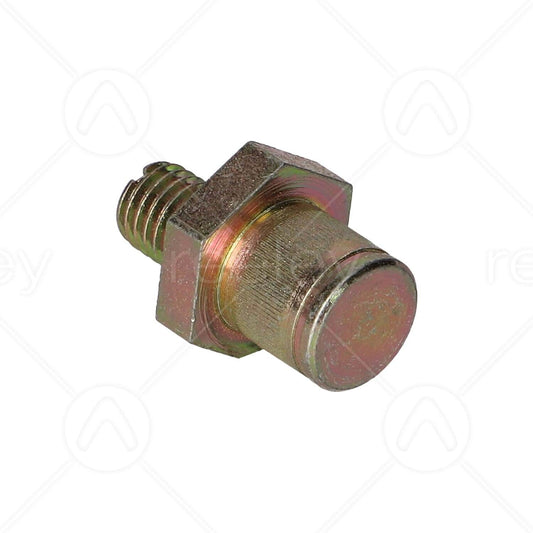

M10 Eccentric Pin to Suit 15mm Bearing

Part Number: M1015E

£5.00

Dimensions:

M10 Eccentric Pin to suit 15mm Bearing

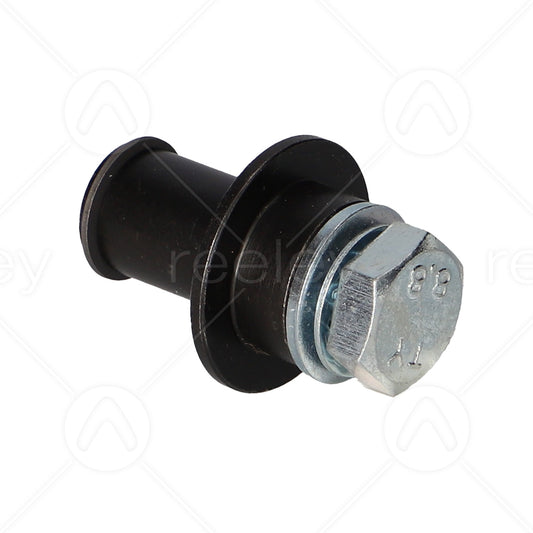

ACLA

M10 Guide Roller Tapped Insert

Part Number: 10201

£12.00

Dimensions:

33mm Long with M10 tapped centre
Suits 2 x 6002ZZ Bearings

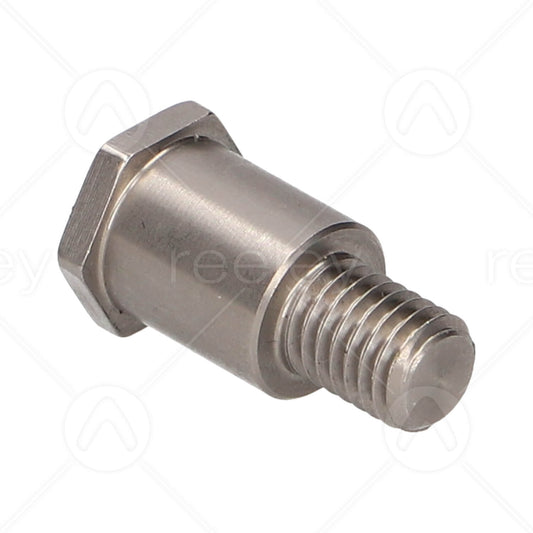

THYSSEN

M10 Lock Roller Bolt

Part Number: 19222

£6.50

FURSE

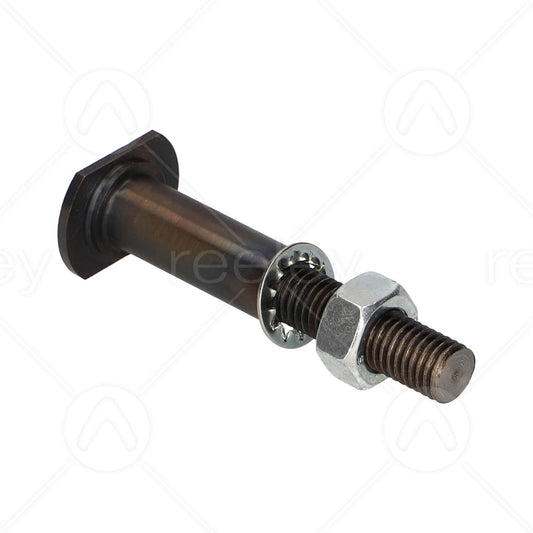

M12 Concentric Guide Roller Pin to Suit 15mm Bearing

Part Number: M1215C

£28.00

Dimensions:

86mm Long x with M12 x 43mm Thread

OTIS

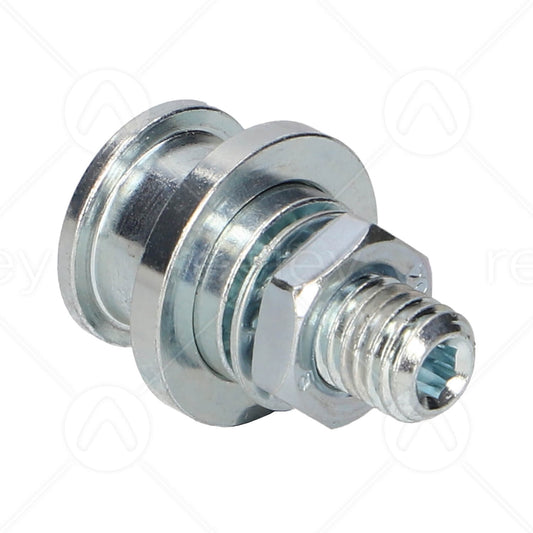

M12 Concentric Pin

Part Number: 20236

£9.00

CEAM

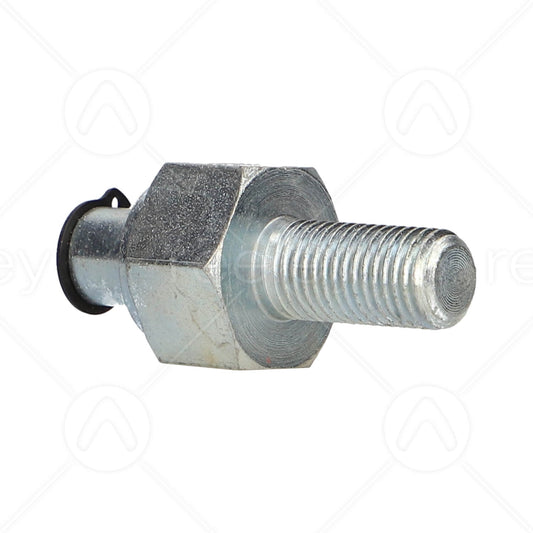

M12 Concentric Pin

Part Number: M1212C

£11.50

BENNIE

M12 Concentric Pin & Spacer Washer

Part Number: 22951

£25.00

Dimensions:

36mm Long x 25mm OD

WADSWORTH

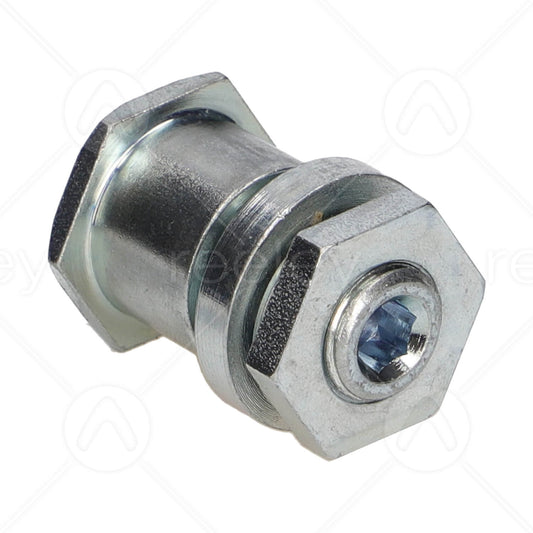

M12 Concentric Pin & Spacer Washer

Part Number: 22452

£8.50

Dimensions:

33mm Long with M12 x 7.5mm Thread

WADSWORTH

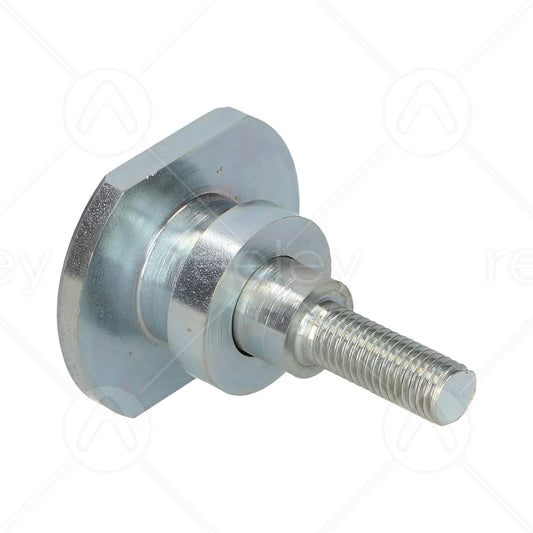

M12 Concentric Pin & Spacer Washer

Part Number: M1233C

£32.00

Dimensions:

70.5mm Long x 60mm OD with M12 Thread x 32mm Long

OTIS

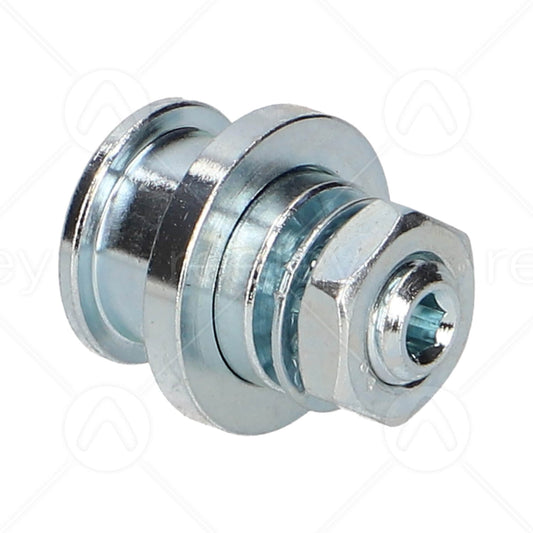

M12 Concentric Pin (Short Thread)

Part Number: 20336

£9.00

Dimensions:

35mm Long (Overall) x M12 x 13mm Long Thread

OTIS

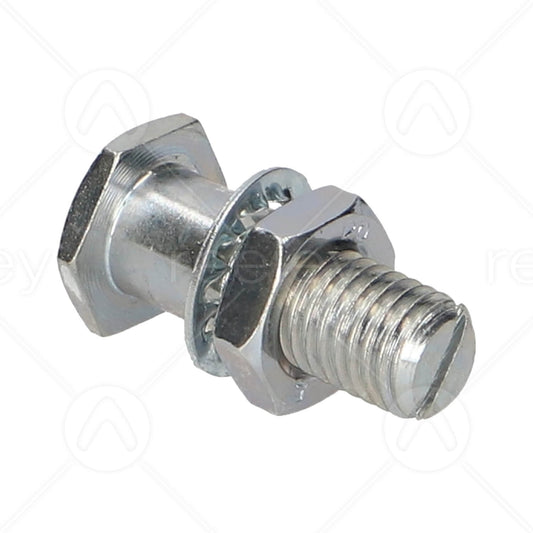

M12 Concentric Pin to Suit 20288/20289

Part Number: 20299

£11.00

Dimensions:

30mm Long x M12

OTIS

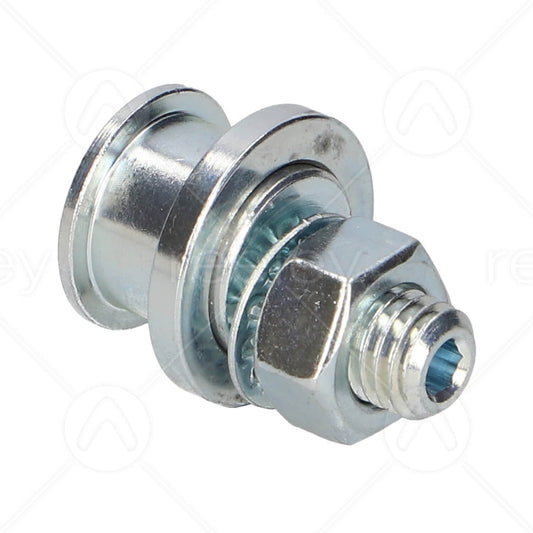

M12 Eccentric Pin

Part Number: 20237

£9.50

HAMMOND & CHAMPNESS

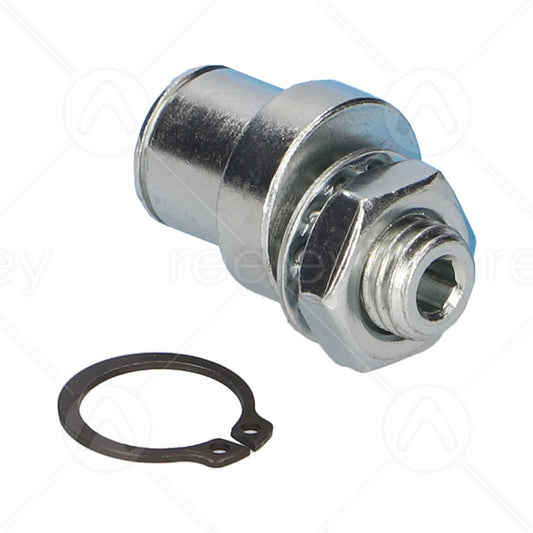

M12 Eccentric Pin

Part Number: 11230

£9.50

Dimensions:

35mm Total Length x M12 x 10mm Long Thread

SELCOM

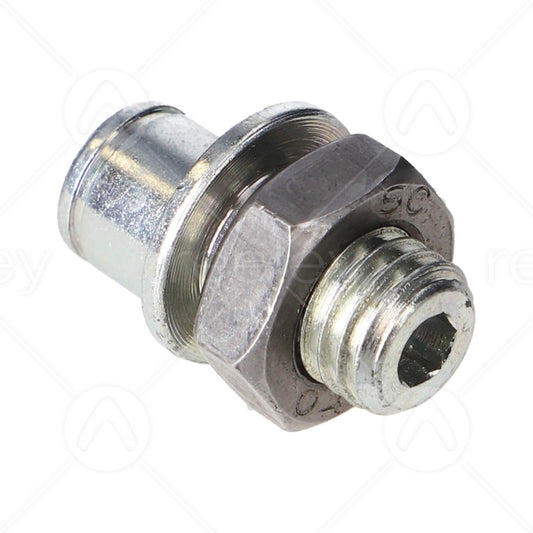

M12 Eccentric Pin

Part Number: 32094

£17.50

Dimensions:

30.5mm Long x 12.7mm OD with M12 x 16mm Thread

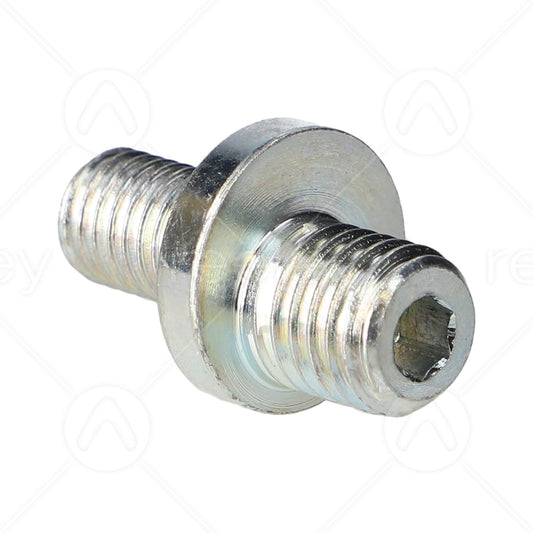

SELCOM

M12 Eccentric Pin

Part Number: 31957

£15.00

Dimensions:

Thread - M12 x 12mm Long
Shaft - M10 x 16.5mm Long
Total Length - 32.5mm

OTIS

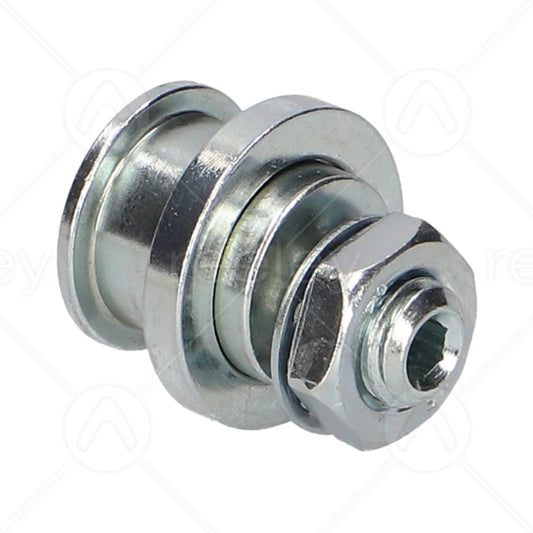

M12 Eccentric Pin (Short Thread)

Part Number: 20337

£10.00

Dimensions:

35mm Long (Overall) x M12 x 13mm Long Thread

MISCELLANEOUS

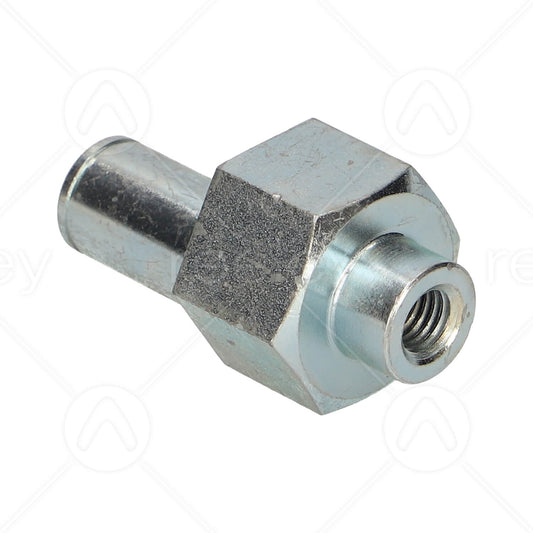

M12 Eccentric Pin to Suit 20mm Bearing

Part Number: M1220E

£22.00

Dimensions:

Hexagon - 36mm Across Flats x 24mm High, Locating Shoulder - 20mm OD x 12mm High with 23mm Tap Depth

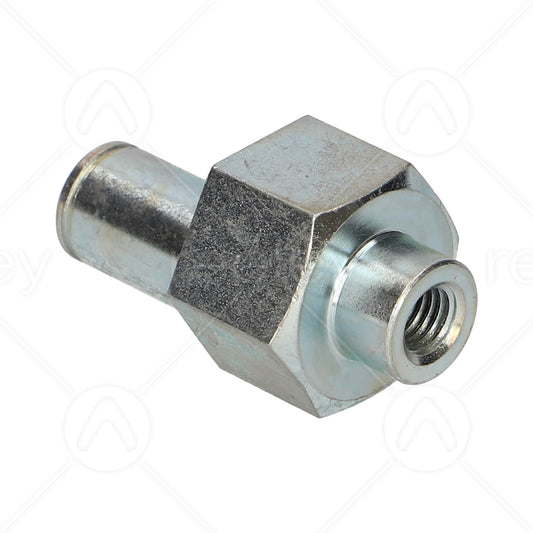

MISCELLANEOUS

M12 Eccentric Pin to Suit 20mm Bearing

Part Number: M1223E

£22.00

Dimensions:

Hexagon - 36mm Across Flats x 24mm High, Locating Shoulder - 20mm OD x 12mm High with 23mm Tap Depth

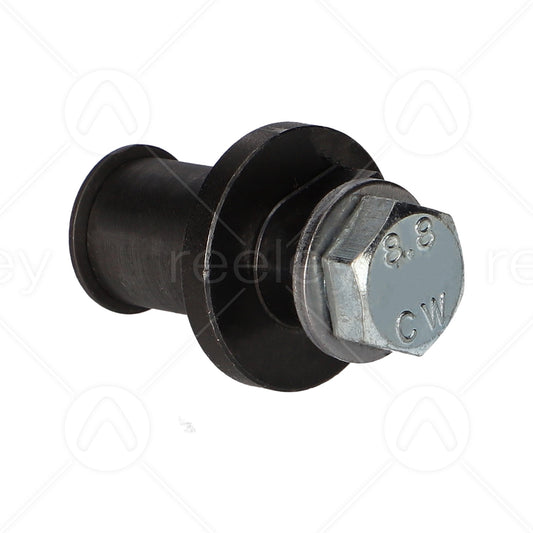

ACLA

M12 Guide Roller Tapped Insert

Part Number: 10200

£15.00

Dimensions:

42mm Long

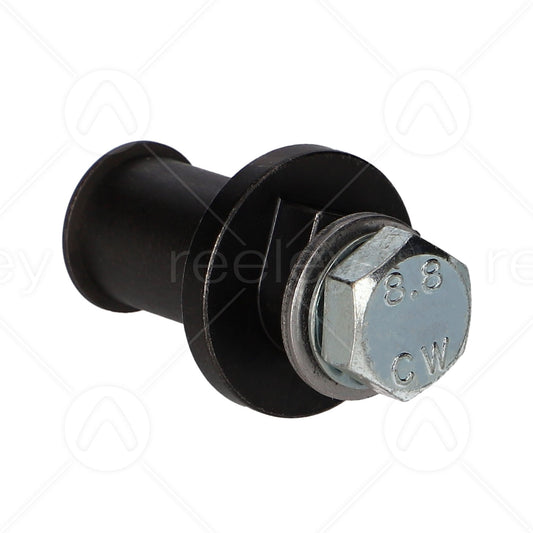

ACLA

M12 Guide Roller Tapped Insert

Part Number: 10205

£15.00

Dimensions:

47mm Long x 35mm OD with M12 Tapped Hole

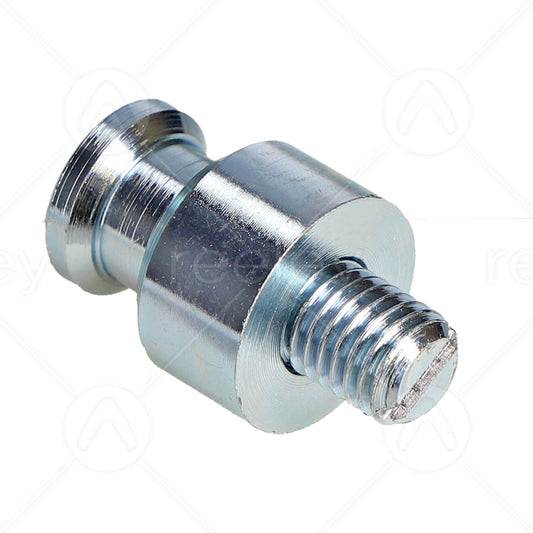

KEIGHLEY

M12 Insert

Part Number: 30005

£18.00

Dimensions:

M12 x 42mm Long with Collar 25mm OD x 14.5mm Wide

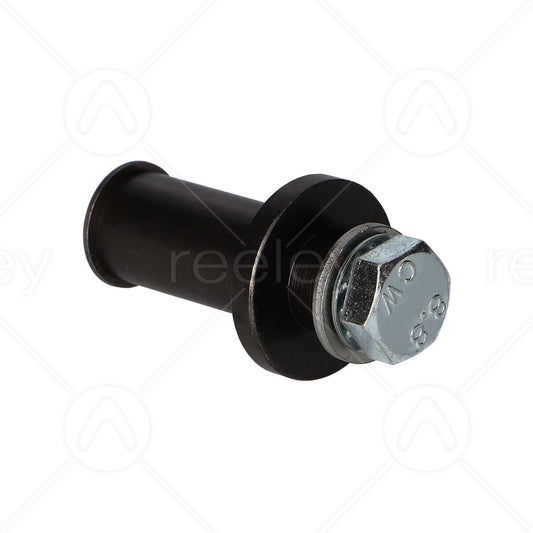

ACLA

M12 Tapped Guide Roller Tapped Insert

Part Number: 10203

£15.00

Dimensions:

57mm Long x 35mm OD

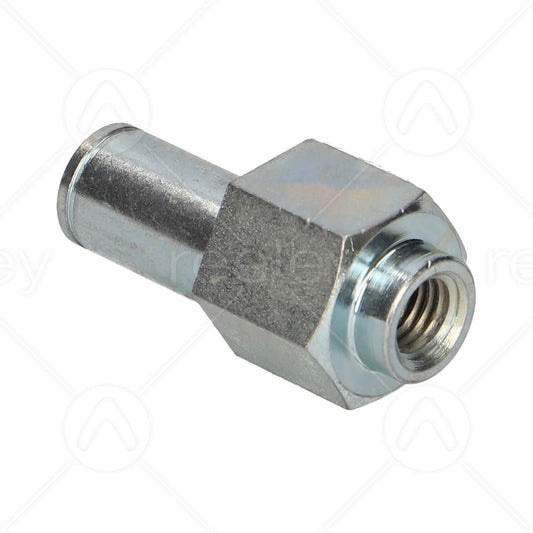

MISCELLANEOUS

M14 Eccentric Pin to Suit 20mm Bearing

Part Number: M1420E

£22.00

Dimensions:

Hexagon - 30mm Across Flats x 25mm High, Locating Shoulder - 20mm OD x 7mm High with 30mm Tap Depth

ORONA

M16 Concentric Pin

Part Number: 11706

£14.00

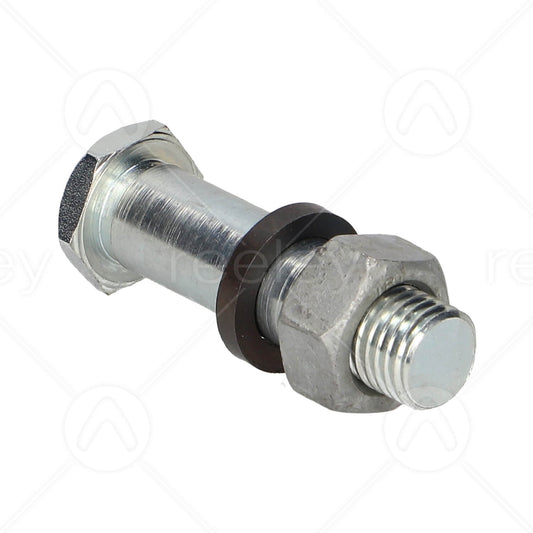

OTIS

M16 Concentric Pin

Part Number: M1670C

£25.00

Dimensions:

70.5mm Long x 25mm Long Thread

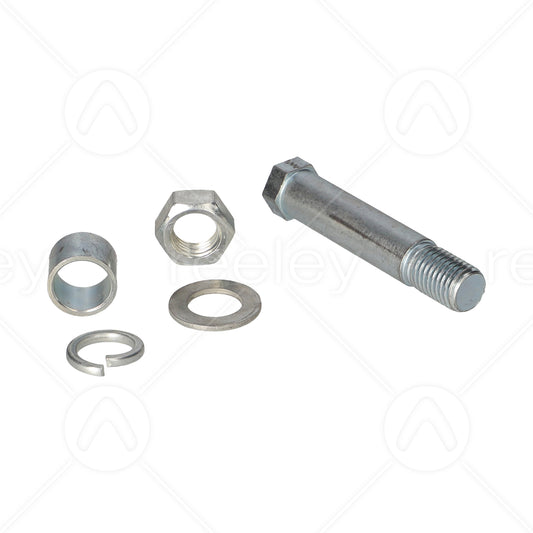

KONE

M16 Concentric Pin to Suit N1538

Part Number: M1692C

£22.00

Dimensions:

92mm Total Length with M16 x 23mm Thread

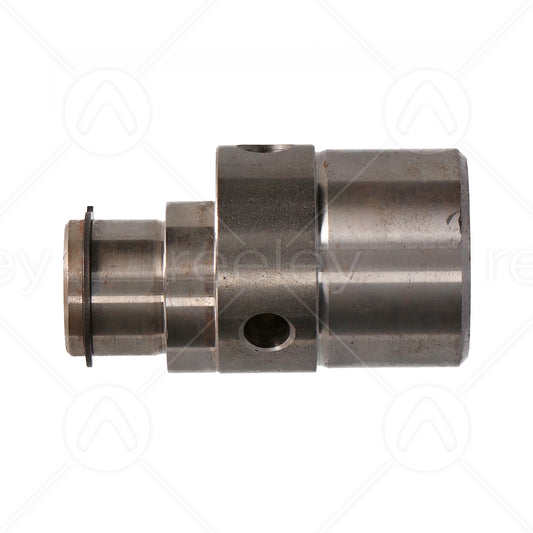

ALGI

M16 Eccentric Pin

Part Number: M1630E

£30.00

Dimensions:

M16 Eccentric Pin

TECHNOLIFT

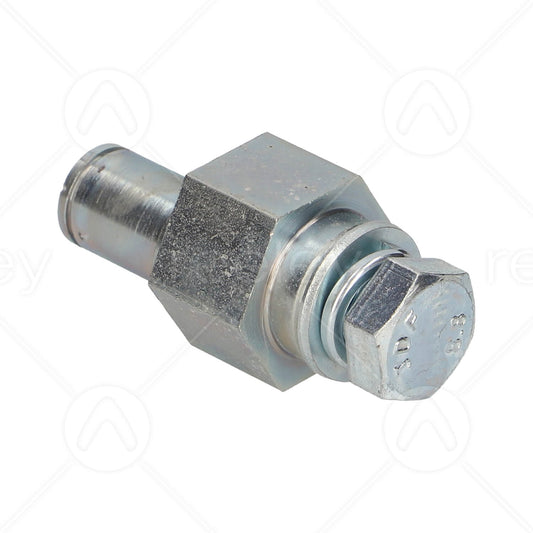

M16 Tapped Eccentric Pin

Part Number: M1620E

£46.00

Dimensions:

66.5mmmm Overall Length x M16 Tapped ID

ACLA

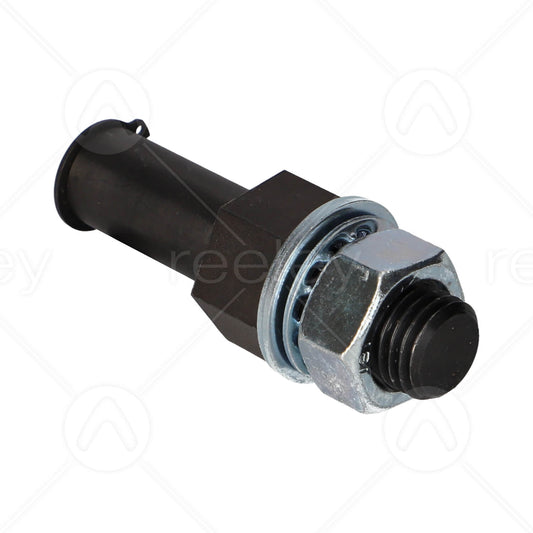

M20 Eccentric Bolt

Part Number: 10202

£20.00

Dimensions:

92mm Long with M20 x 30mm Thread

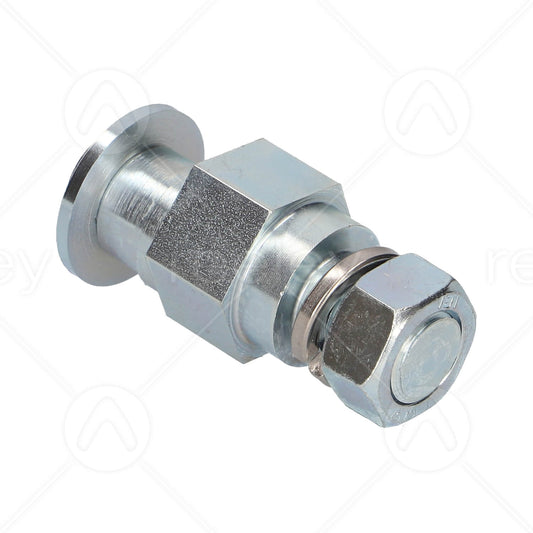

OTIS

M20 Eccentric Pin

Part Number: M2080E

£35.00

Dimensions:

M20 x 80mm Long Eccentric Pin

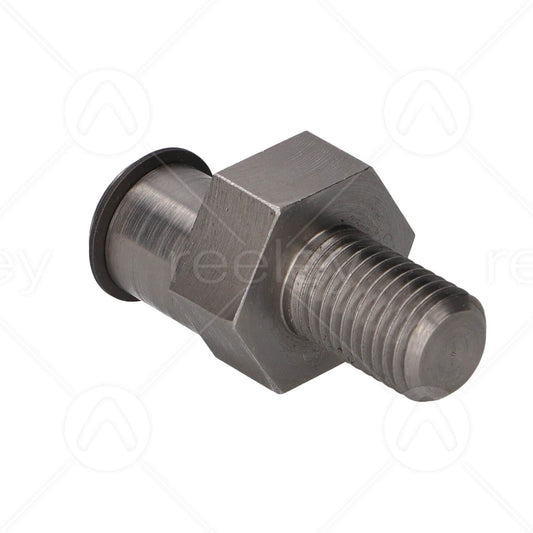

ELECTRA VITORIA

M20 Eccentric Pin

Part Number: M2025E

£50.00

Dimensions:

73mm Total Length with 24mm OD x 27mm Pin and M20 x 30mm Thread

MISCELLANEOUS

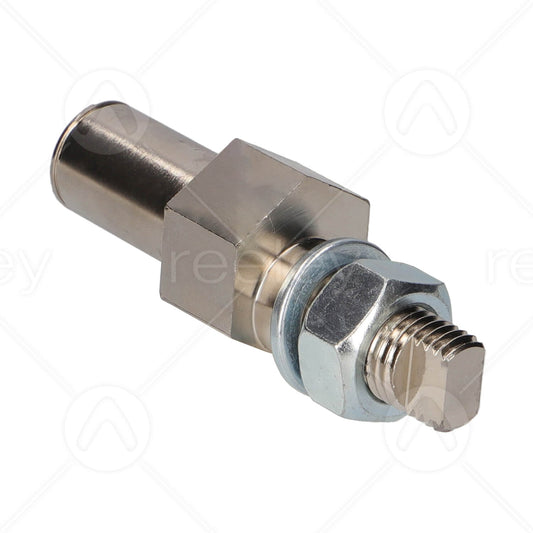

M20 Eccentric Pin to Suit 25mm Bearing

Part Number: M2025EL

£24.00

Dimensions:

40mm Long Pin x 21mm Wide Hexagon x 40mm Long Thread

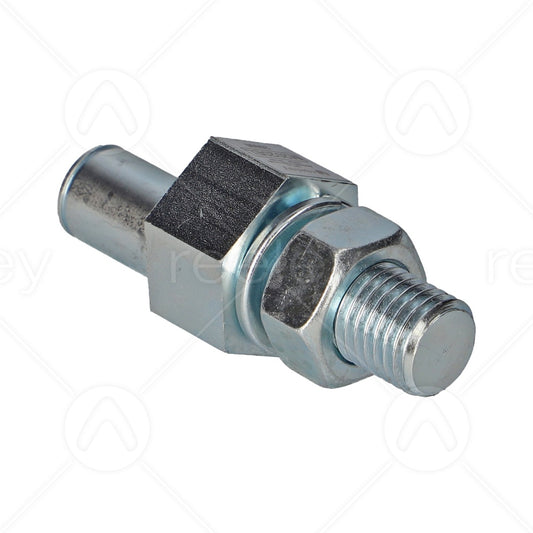

MISCELLANEOUS

M20 Pin to Suit 20mm Bearing

Part Number: M2020EL

£20.00

Dimensions:

29.5mm Long Pin x 21mm Wide Hexagon x 40mm Long Thread

MISCELLANEOUS

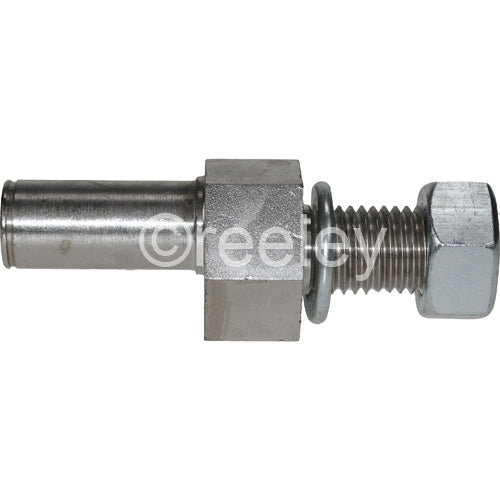

M20 Pin to Suit 20mm Bearing

Part Number: M2020E

£20.00

Dimensions:

40mm Long Pin x 21mm Wide Hexagon x 40mm Long Thread

THYSSEN

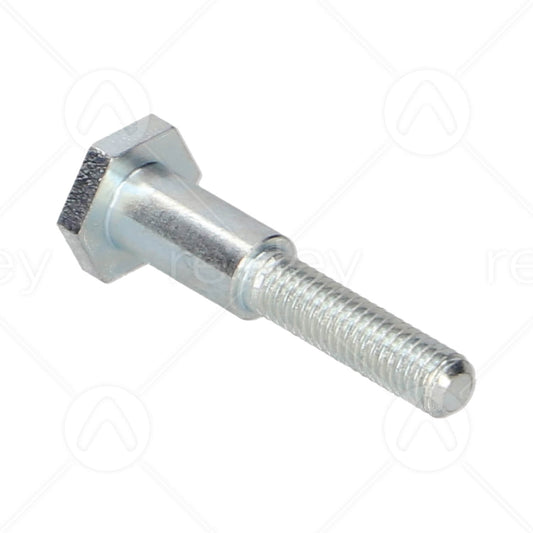

M6 Pick Up Roller Shaft

Part Number: 19204

£20.00

Dimensions:

40mm Long with M6 x 22mm Thread

PICKERINGS

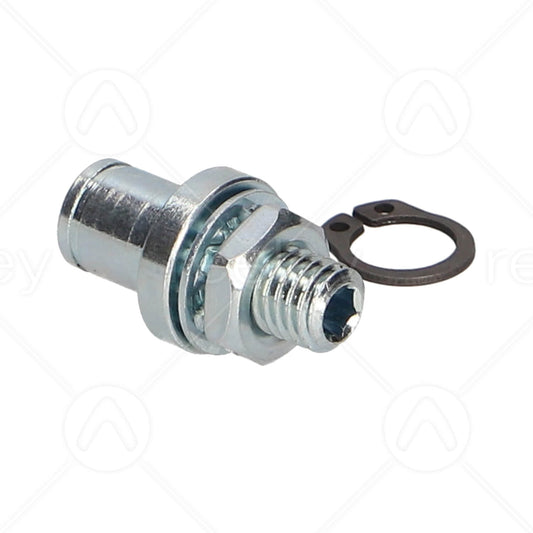

M8 Concentric Pin

Part Number: 52734

£7.50

Dimensions:

M8 thread

SCHINDLER

M8 Concentric Type 'S' Threaded Pin (QKS11)

Part Number: 77143

£7.50

Dimensions:

16mm OD (Max) x 30mm Long with M8 x 10mm Thread

DUPAR & DEWHURST

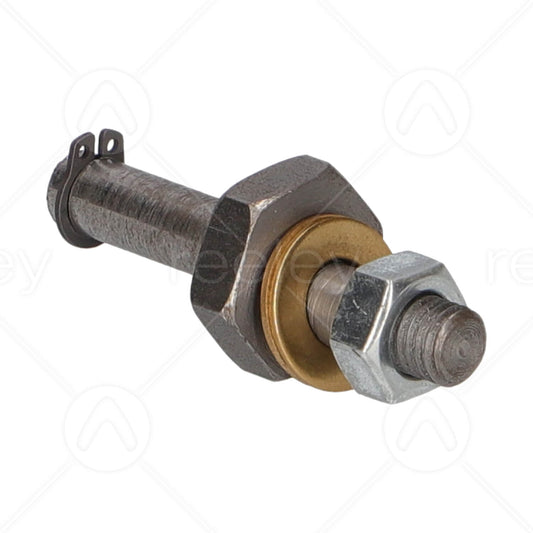

M8 Eccentric Pin

Part Number: 17706

£15.00

Dimensions:

55mm Long x 8mm OD with M8 x 12mm Thread

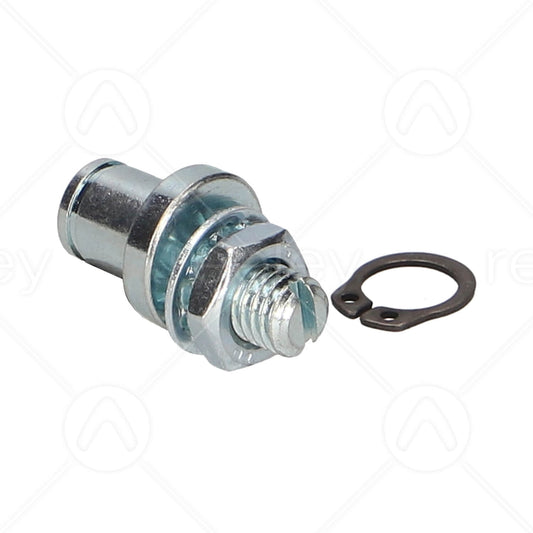

PICKERINGS

M8 Eccentric Pin

Part Number: 52735

£8.50

Dimensions:

M8 thread

MISCELLANEOUS

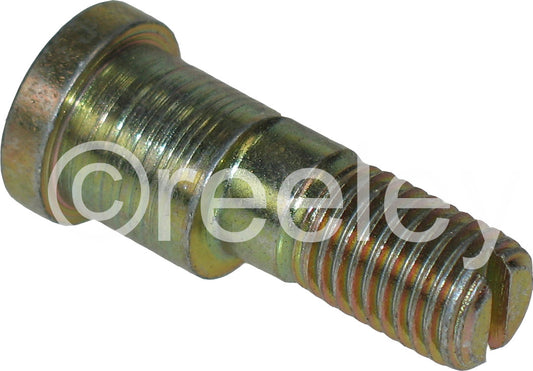

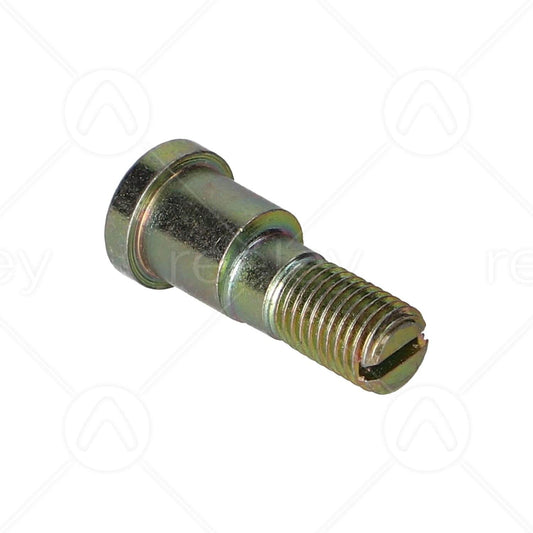

M8 Eccentric Pin to Suit 10mm Bearing

Part Number: M810E

£5.00

Dimensions:

M8 Eccentric Pin to suit 10mm Bearing

ACLA

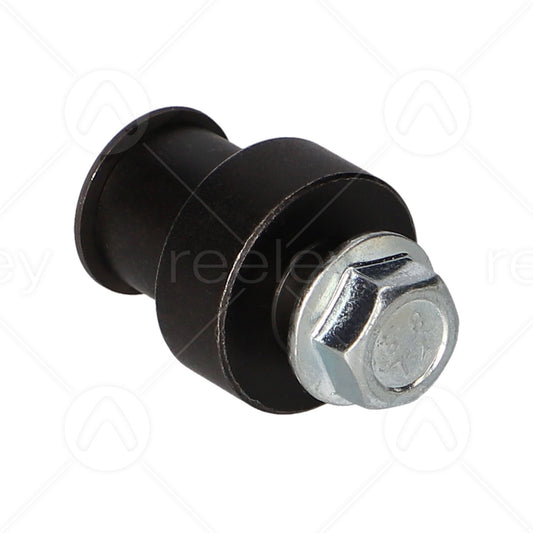

M8 Guide Roller Tapped Insert

Part Number: 10204

£14.00

Dimensions:

31mm Long

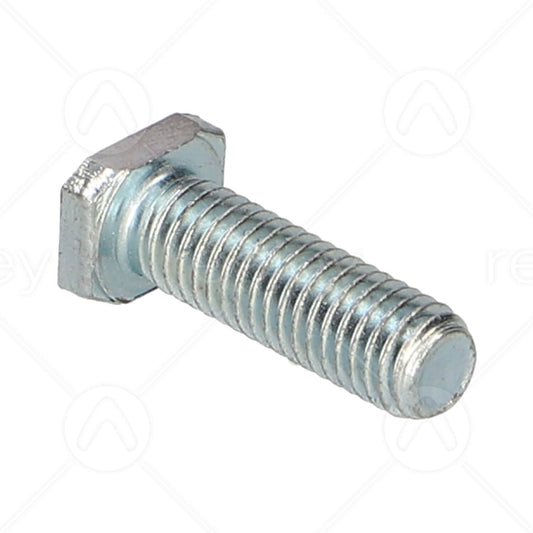

OTIS

M8 Insert

Part Number: 20109

£2.00

Dimensions:

M8 x 25mm Thread

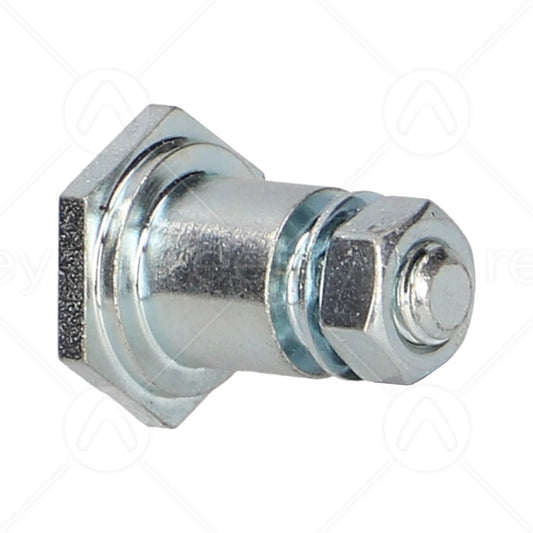

FURSE

M8 Insert

Part Number: 22102

£14.00

Dimensions:

30mm Long x 15mm Wide x M8 Thread

ORONA

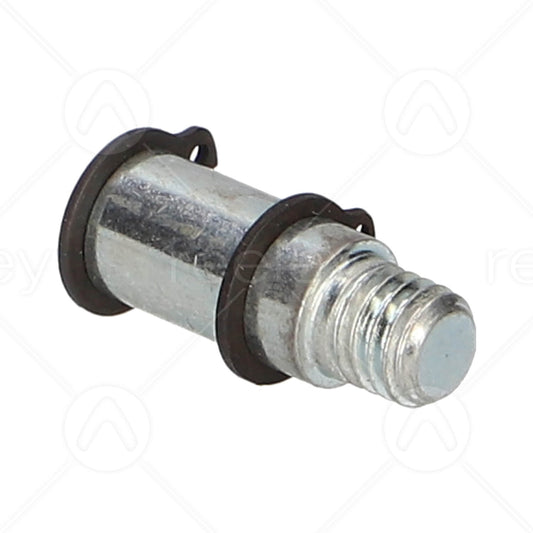

M8 Skate Roller Pin

Part Number: 11721

£7.50

Dimensions:

28mm Long x M8 Thread

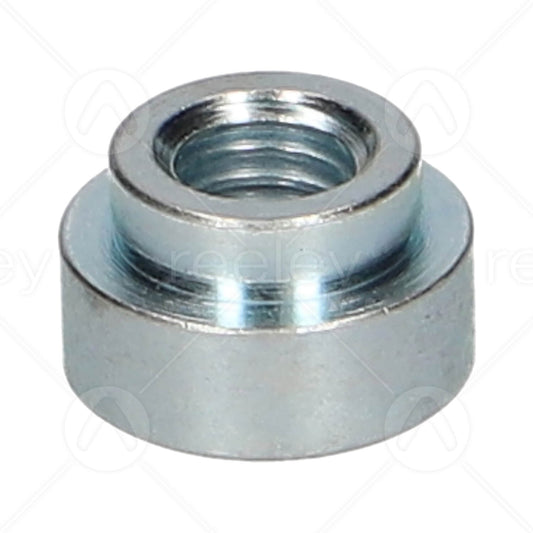

EVANS

M8 Tapped Insert

Part Number: 12556

£2.50

Dimensions:

M8 ID

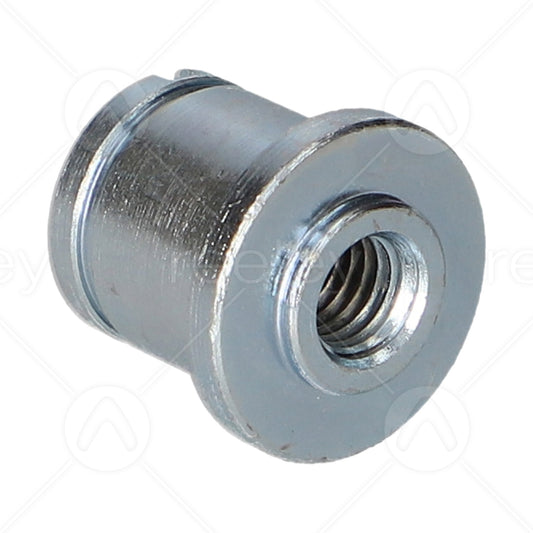

KONE

M8 Tapped Insert

Part Number: 11106

£10.00

Dimensions:

20mm Long x 17mm Wide

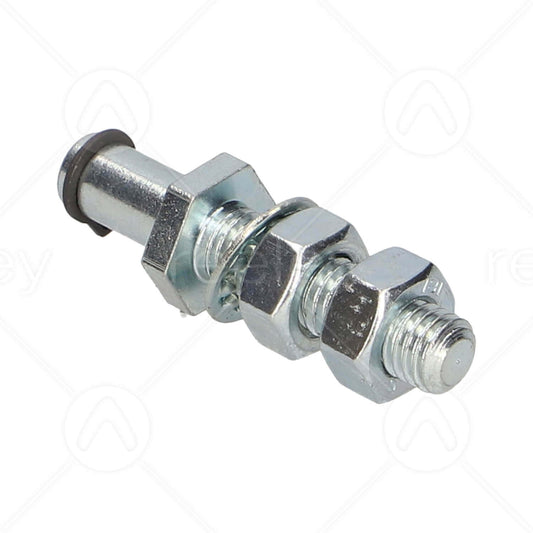

DUPAR & DEWHURST

M8 Threaded Pin, Nuts & Washers

Part Number: 17710

£13.00

Dimensions:

30mm Thread x M8

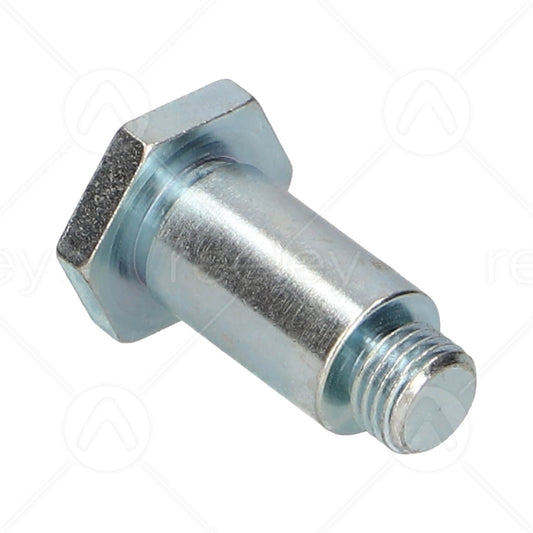

DOVER, HAMMOND & CHAMPNESS

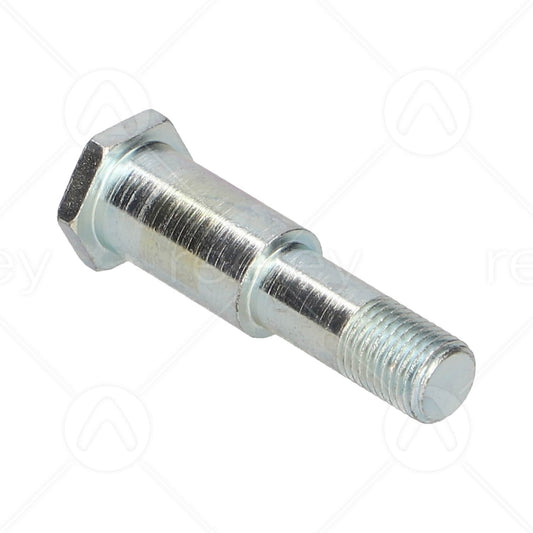

Mounting Bolt

Part Number: 11307

£8.75

Dimensions:

31mm Long with 3/8" (9.525mm) x 6.5mm Thread

DOVER, HAMMOND & CHAMPNESS

Mounting Bolt

Part Number: 11306

£8.75

Dimensions:

48mm Long with 3/8" (9.525mm) x 10.5mm Long Thread

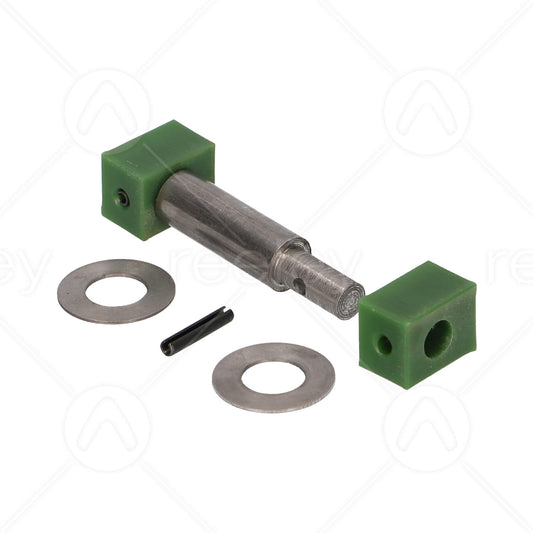

MISCELLANEOUS

Nylon Block Axle Assembly to Suit A1030

Part Number: 90021

£30.00

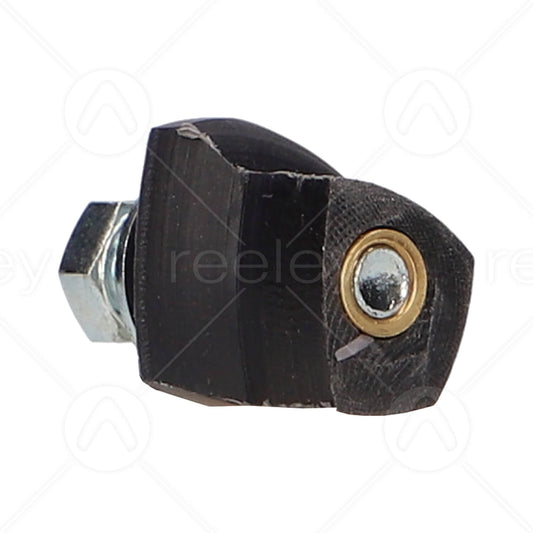

FERMATOR, SCHINDLER

Nylon Kicking Block with Eccentric Insert

Part Number: 18986

£10.50

Dimensions:

14.5mm Overall High with 24mm Long M5 Bolt

CEITA

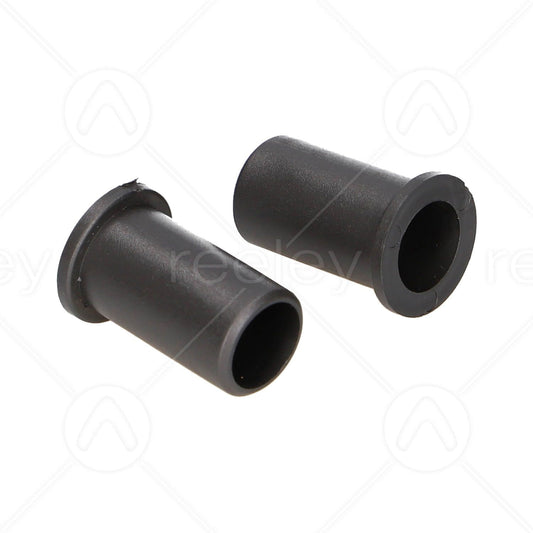

Nylon Sleeve SN119 (Pack of 2)

Part Number: 35018

£9.00

Dimensions:

19mm OD (Max) x 15mm OD (Min) x 28mm Long x 12.5mm ID

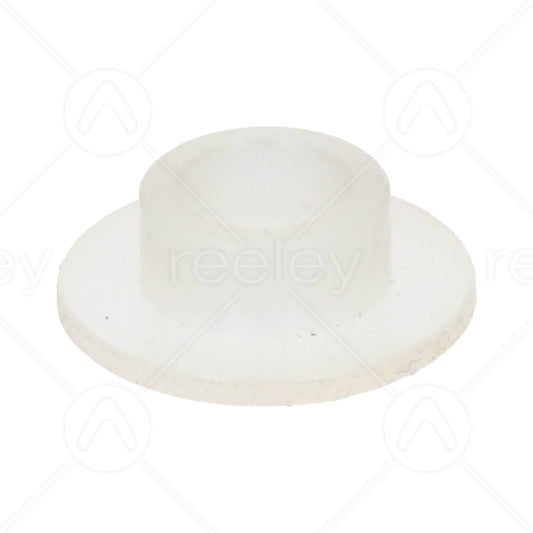

SLYCMA

Nylon Top Hat

Part Number: 88023

£15.00

Dimensions:

30mm OD x 12mm ID x 10mm Thick

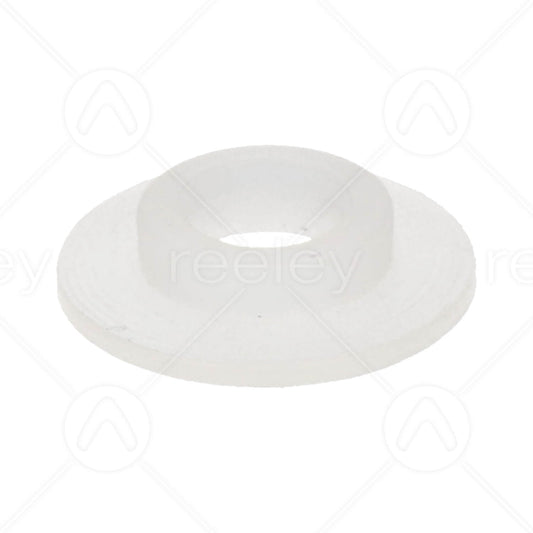

SLYCMA

Nylon Top Hat

Part Number: 88024

£15.00

Dimensions:

30mm OD x 12mm ID x 6mm Thick

SEMATIC

Nylon Top Hat Bush for Door Pivot Arm

Part Number: 44026

£6.00

Dimensions:

24mm OD x 6mm Wide x 12mm ID

ACLA

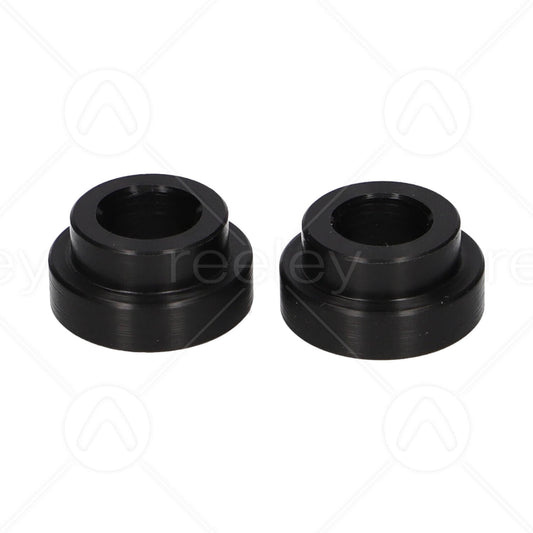

Nylon Top Hat Inserts

Part Number: 10199

£9.50

Dimensions:

22mm OD x 11mm Wide (Each) x 10mm ID

DOVER, HAMMOND & CHAMPNESS

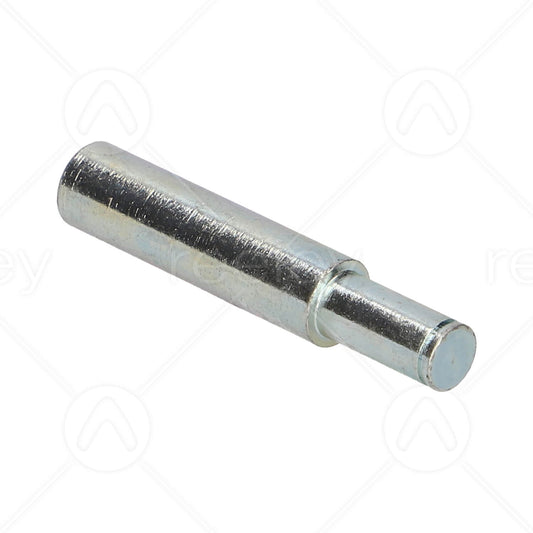

Pick Up Roller Shaft

Part Number: 11298

£9.50

Dimensions:

68mm Long x 12.7mm OD to Suit 9.52mm ID Rollers

SLYCMA

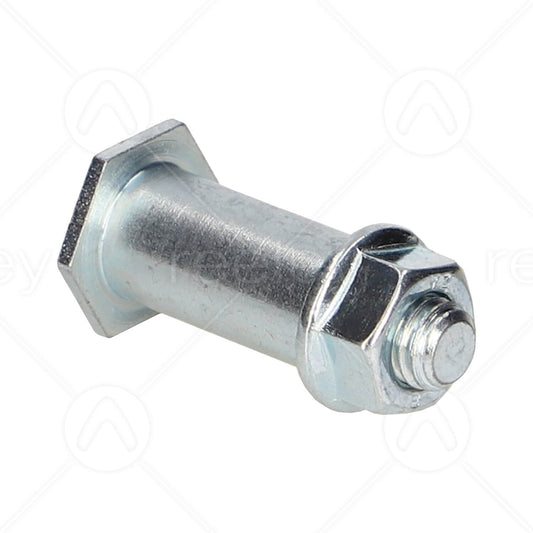

Pin to Suit Part No. 88010

Part Number: 88015

£20.00

Dimensions:

36mm Long x M8 x 13mm Thread

MISCELLANEOUS

Reducing Sleeve 17mm to 10mm

Part Number: 91710

£5.00

Dimensions:

17mm OD x 12mm Wide x 10mm ID

MISCELLANEOUS

Reducing Sleeve 17mm to 12.7mm

Part Number: 91713

£5.00

Dimensions:

17mm OD x 12mm Wide x 12.7mm ID

MISCELLANEOUS

Reducing Sleeve 17mm to 12mm

Part Number: 91712

£5.00

Dimensions:

17mm OD x 12mm Wide x 12mm ID

MISCELLANEOUS

Reducing Sleeve 17mm to 15mm

Part Number: 91715

£5.00

Dimensions:

17mm OD x 12mm Wide x 15mm ID

MISCELLANEOUS

Reducing Sleeve 17mm to 8mm

Part Number: 91708

£5.00

Dimensions:

17mm OD x 12mm Wide x 8mm ID

MISCELLANEOUS

Reducing Sleeve 20mm to 10mm

Part Number: 92010

£5.00

Dimensions:

20mm OD x 12mm Wide x 10mm ID

MISCELLANEOUS

Reducing Sleeve 20mm to 12.7mm

Part Number: 92013

£5.00

Dimensions:

20mm OD x 12mm Wide x 12.7mm ID

MISCELLANEOUS

Reducing Sleeve 20mm to 12mm

Part Number: 92012

£5.00

Dimensions:

20mm OD x 12mm Wide x 12mm ID

MISCELLANEOUS

Reducing Sleeve 20mm to 15mm

Part Number: 92015

£5.00

Dimensions:

20mm OD x 12mm Wide x 15mm ID

MISCELLANEOUS

Reducing Sleeve 20mm to 17mm

Part Number: 92017

£5.00

Dimensions:

20mm OD x 12mm Wide x 17mm ID

MISCELLANEOUS

Reducing Sleeve 25mm to 12.7mm

Part Number: 92513

£5.00

Dimensions:

25mm OD x 12mm Wide x 12.7mm ID

MISCELLANEOUS

Reducing Sleeve 25mm to 12mm

Part Number: 92512

£5.00

Dimensions:

25mm OD x 12mm Wide x 12mm ID

MISCELLANEOUS

Reducing Sleeve 25mm to 15mm

Part Number: 92515

£5.00

Dimensions:

25mm OD x 12mm Wide x 15mm ID

MISCELLANEOUS

Reducing Sleeve 25mm to 17mm

Part Number: 92517

£5.00

Dimensions:

25mm OD x 12mm Wide x 17mm ID

MISCELLANEOUS

Reducing Sleeve 25mm to 20mm

Part Number: 92520

£5.00

Dimensions:

25mm OD x 12mm Wide x 20mm ID

MISCELLANEOUS

Reducing Sleeve 30mm to 25mm

Part Number: 93025

£8.00

Dimensions:

30mm OD x 25mm ID x 12mm Wide

MISCELLANEOUS

Reducing Top Hat 25mm to 15mm

Part Number: 2515TH

£10.00

Dimensions:

25mm OD x 15mm ID

MISCELLANEOUS

Reducing Top Hat 25mm to 17mm

Part Number: 2517TH

£7.50

Dimensions:

25mm OD x 17mm ID

MISCELLANEOUS

Reducing Top Hat 25mm to 20mm

Part Number: 2520TH

£7.50

Dimensions:

25mm OD x 20mm ID

OTIS

Rivet

Part Number: 20205

£0.75

Dimensions:

16mm Long x 8mm OD

SCHINDLER

Rivet (QKS11)

Part Number: 77144

£8.00

Dimensions:

16mm OD Base x 10mm OD Shaft x 22mm Wide x 10mm ID

SELCOM

Shaft to Suit Part No. 31976

Part Number: 32004

£6.50

Dimensions:

40mm Long x M8 Thread

EXPRESS

Skate Vane Roller Pin

Part Number: 16158

£11.50

Dimensions:

10mm OD x 35mm Long

GAL

Snap Pin with Nylon Bush

Part Number: 12958

£8.50

Dimensions:

28mm Long x 6mm OD

GAL, SCHINDLER

Spirator Mounting Stud

Part Number: 13002

£12.00

Dimensions:

46mm Total Height with M8 Thread

EXPRESS

Steel Collar

Part Number: 16130

£18.50

Dimensions:

32mm OD x 19mm Wide x 1/2" (12.7mm) ID

WADSWORTH

Steel Concentric Pin with Half Nut

Part Number: 22454

£15.00

Dimensions:

46.5mm Long with 1/2" (12.7mm) x 14mm Thread

WADSWORTH

Steel Concentric Pin with Half Nut

Part Number: 22453

£8.75

Dimensions:

39mm Total Length. 5/8" (15.875mm) x 13mm Thread

WADSWORTH

Steel Spacer Washer/Sleeve

Part Number: 22456

£1.50

Dimensions:

7/8" (22.225mm) OD x 1/4" (6.350mm) Wide x 5/8" (15.875mm) ID

WADSWORTH

Steel Spacer Washer/Sleeve

Part Number: 22455

£1.50

Dimensions:

22mm OD x 8mm Wide x 16mm ID

FURSE

Steel Top Hat (Pair) to Reduce Centre to 9mm

Part Number: 22127

£12.00

Dimensions:

25mm OD x 9mm ID

MISCELLANEOUS

Steel Top Hat Insert to Suit D7525

Part Number: 99979

£12.50

Dimensions:

30mm OD x 22.5mm Wide x 12mm ID

CEITA

Steel Upper Pin

Part Number: 35020

£30.00

Dimensions:

185mm Long x 12mm OD with 1 x M6 Tapped Hole and 1 x 6mm Plain Hole

CEITA

Steel Upper Pin (SE101)

Part Number: 35019

£30.00

Dimensions:

153.5mm Long x 12mm OD with 1 x M6 and 1 x 6mm Fixing Hole

MISCELLANEOUS

Steel Washer

Part Number: W3226

£2.50

Dimensions:

31.5mm OD x 26mm ID x 0.5mm Thick

DUPAR & DEWHURST, HAMMOND & CHAMPNESS

Top Hat Insert

Part Number: 11226

£12.50

Dimensions:

22mm OD x 14mm Wide x 10mm ID

OTIS

Top Hat Insert

Part Number: 20298

£5.00

Dimensions:

32mm OD x 8mm Wide x 13mm ID

MISCELLANEOUS

Washer (1mm Thick)

Part Number: 102W1

£2.00

Dimensions:

25mm OD x 20mm ID x 1mm Thick

MISCELLANEOUS

Washer (2mm Thick)

Part Number: 102W2

£2.00

Dimensions:

25mm OD x 20mm ID x 2mm Thick

MISCELLANEOUS

Washer (3mm Thick)

Part Number: 102W3

£2.00

Dimensions:

25mm OD x 20mm ID x 2mm Thick

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Shopping Cart

Inserts & Pins

Filter By

Manufacturer

Product Types

Inside Diameter

Outside Diameter

Width

Depth/Thickness

Length/Height

Shaft Length

Shaft OD

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Order before 4:30pm Monday - Thursday or 3:30pm on Friday for Next Working Day Delivery.

Free UK Next Day Delivery on orders over £100

Shopping Cart

Inserts & Pins

Filter By

Manufacturer

Product Types

Inside Diameter

Outside Diameter

Width

Depth/Thickness

Length/Height

Shaft Length

Shaft OD

Sort by:

Sort by:
