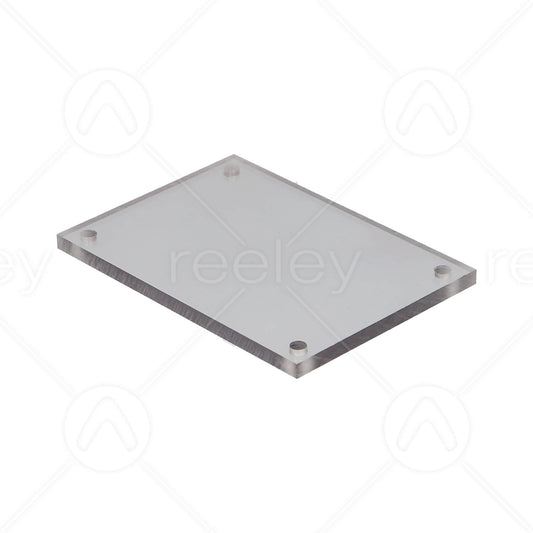

Lock Components

Part Number: 12561

£8.30

Dimensions:

127mm Long x 89mm Wide x 6mm Thick

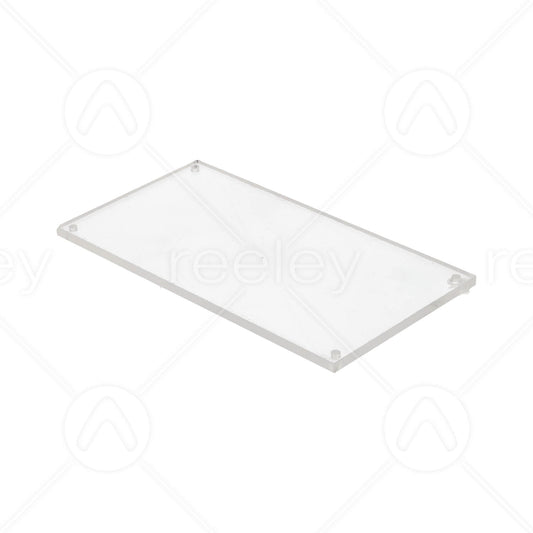

EVANS

Part Number: 12562

£9.70

Dimensions:

204mm Long x 110mm Wide x 6mm Thick

GAL

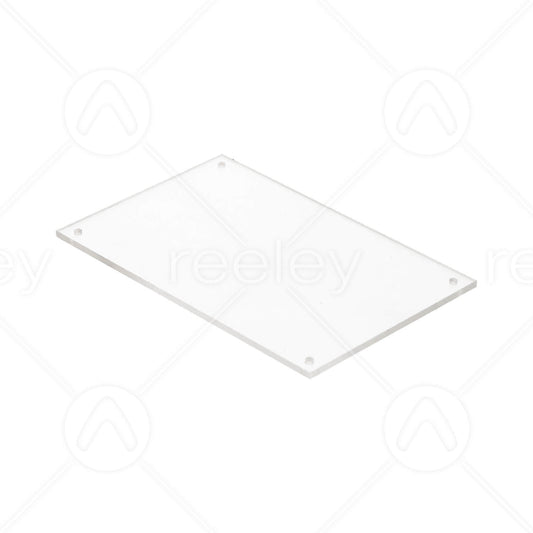

Part Number: 13021

£8.40

Dimensions:

140mm Long x 90mm Wide x 3mm Thick

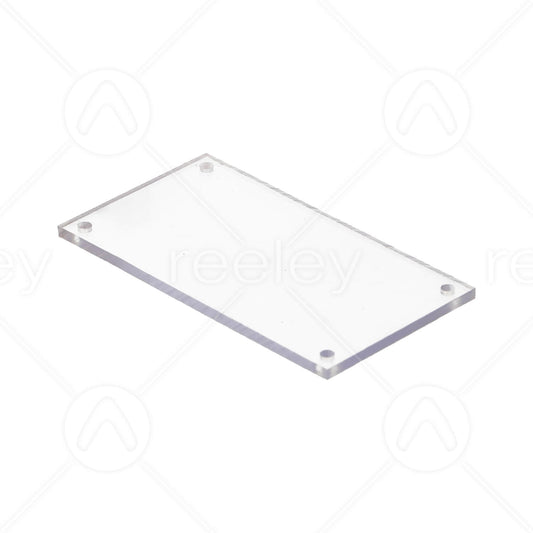

GAL

Part Number: 13022

£7.30

Dimensions:

90mm Long x 50mm Wide x 3mm Thick

GAL

Part Number: 13023

£10.50

Dimensions:

245mm Long x 112mm Wide x 3mm Thick

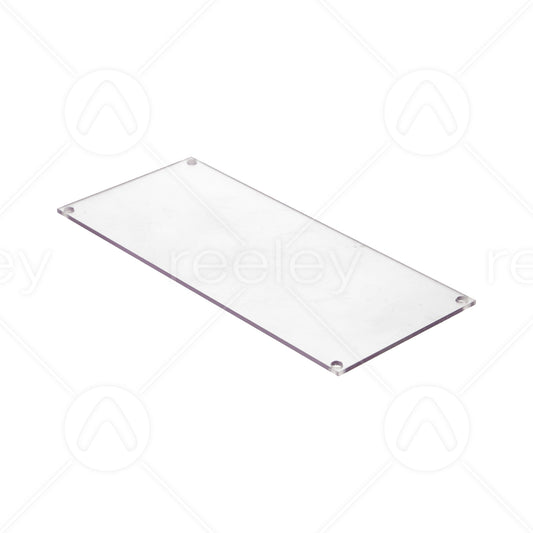

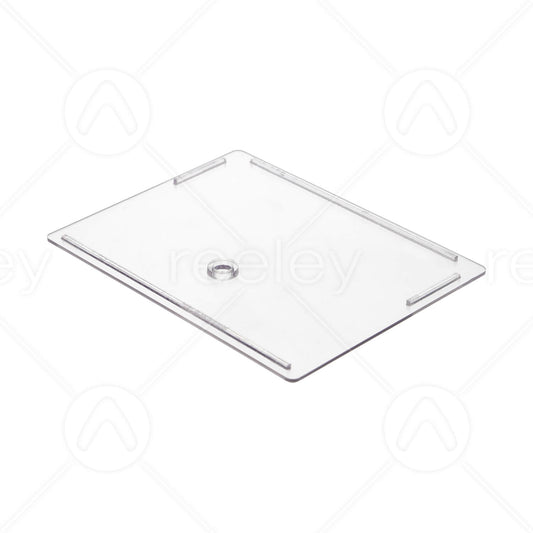

OTIS

Clear Polycarbonate Lock Cover to Suit 7080 Lock

Part Number: 20193

£25.00

Dimensions:

183mm Long x 143mm Wide

FIAM

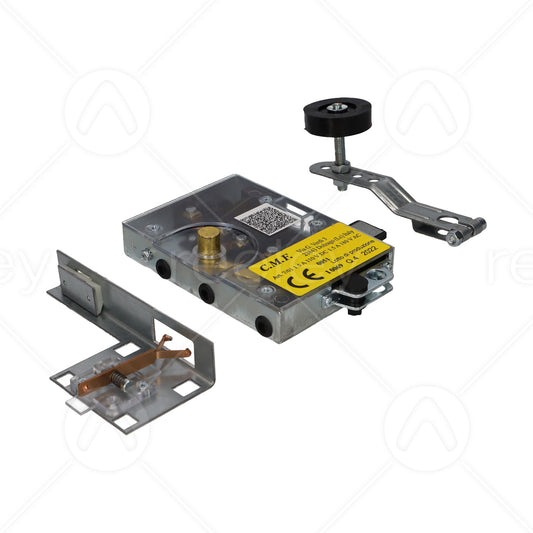

CMF Pre-Assembled Semi-Automatic Lock

Part Number: 88533

£145.00

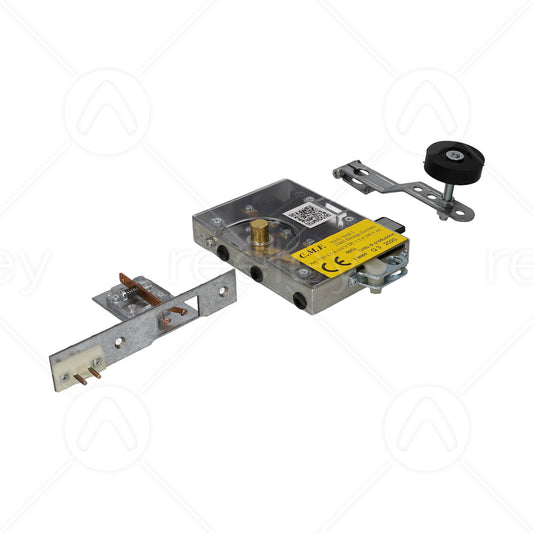

FIAM

CMF Pre-Assembled Semi-Automatic Lock

Part Number: 88532

£145.00

FIAM

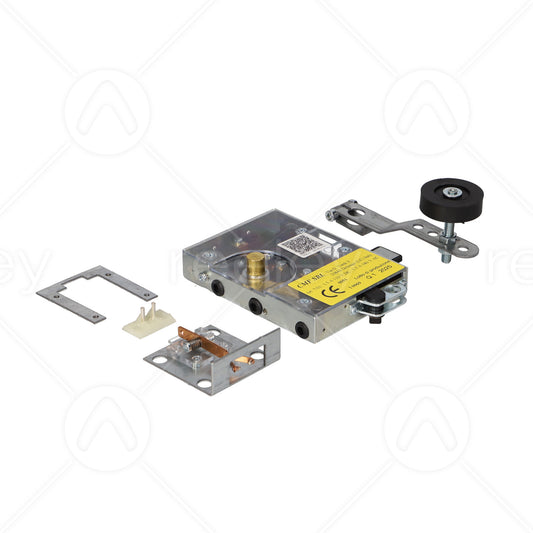

CMF Semi-Automatic Lock HOMOLOGATED

Part Number: 88531

£145.00

ORONA

Compact Interlocking Support Set

Part Number: 11752

£20.00

Dimensions:

74.5mm Long x 100mm Wide

ORONA

Compact Subset Locking Beak & Plate (Left Hand)

Part Number: 11722

£60.00

Dimensions:

245mm Long x 95mm Wide x 57mm Deep

ORONA

Compact Subset Locking Beak & Plate (Right Hand)

Part Number: 11723

£60.00

Dimensions:

245mm Long x 95mm Wide x 57mm Deep

FUJITEC

Complete Door Lock and Connection Arm

Part Number: 44712

£125.00

Dimensions:

254mm Long x 108mm Wide

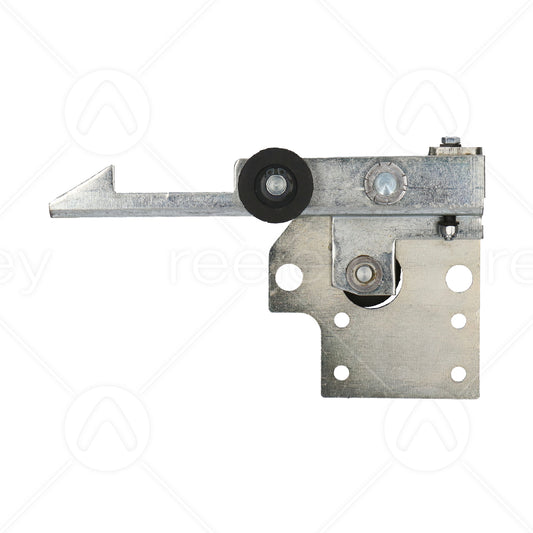

CMM

Complete Euro 91 Lock (Left Hand)

Part Number: 39955

£230.00

Dimensions:

201mm Long x 119mm Wide x 66.5mm Deep with 2 x 34mm OD x 14mm Wide Rollers

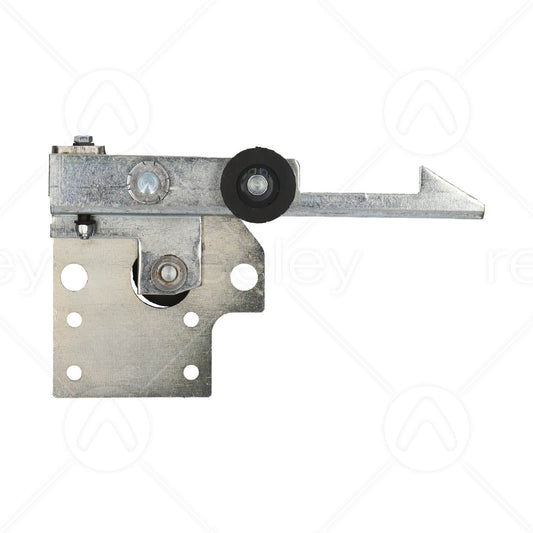

CMM

Complete Euro 91 Lock (Right Hand)

Part Number: 39956

£230.00

Dimensions:

201mm Long x 119mm Wide x 66.5mm Deep with 2 x 34mm OD x 14mm Wide Rollers

OTIS

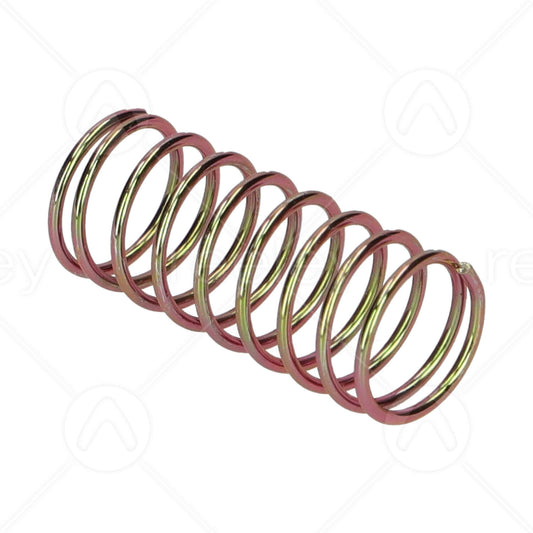

Compression Spring to Suit 6940A Lock

Part Number: 20663

£8.00

Dimensions:

40mm Long x 17mm OD

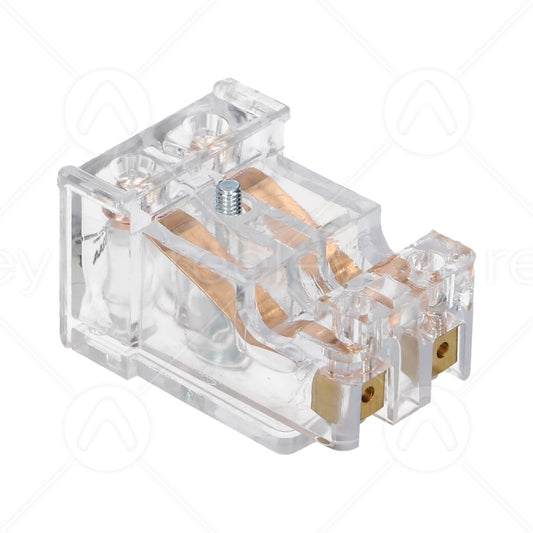

TIEFFE

Contact (TF300)

Part Number: 69601

£20.00

Dimensions:

55mm Long x 30mm Wide x 32mm Deep

SCHINDLER

Contact Assembly T11/T82 (Left Hand)

Part Number: 77036

£75.00

OTIS, PRISMA

Contact for 9940 Lock

Part Number: 20210

£200.00

Dimensions:

102mm Long x 40mm Wide x 28mm Deep

OTIS

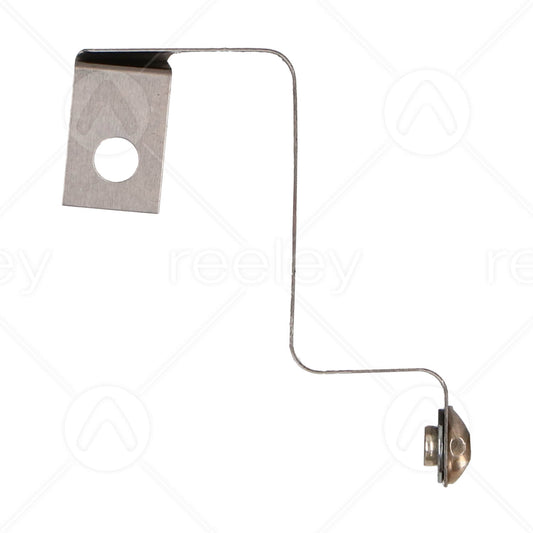

Contact for Interlock Switch to Suit 7080 Lock (Left Hand)

Part Number: 20261

£22.00

Dimensions:

43mm High x 38mm Wide

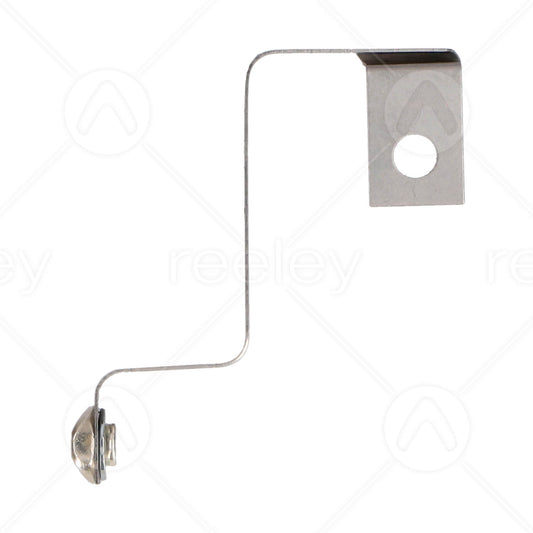

OTIS

Contact for Interlock Switch to Suit 7080 Lock (Right Hand)

Part Number: 20260

£22.00

Dimensions:

43mm High x 38mm Wide

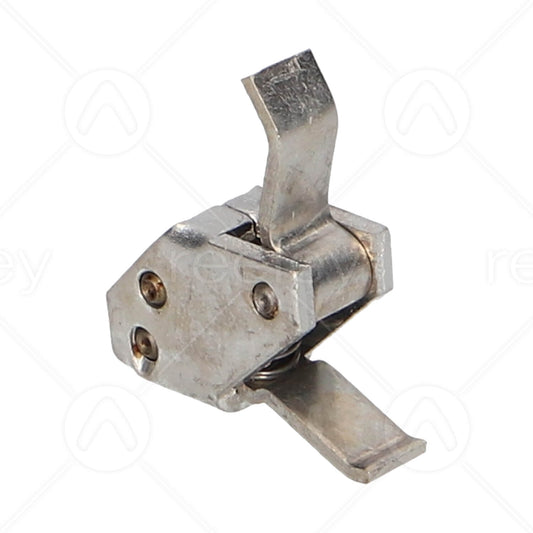

OTIS

Contact Holder for "L" Door Lock

Part Number: 20301

£38.50

Dimensions:

30mm Long x 13mm Wide x 37.5mm Deep

OTIS

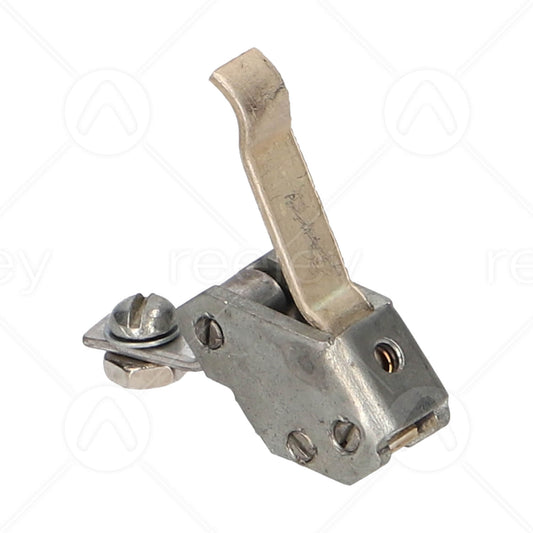

Contact Holder for "LA" Door Lock

Part Number: 20302

£38.50

Dimensions:

41mm High x 42.5mm Wide x 13mm Deep

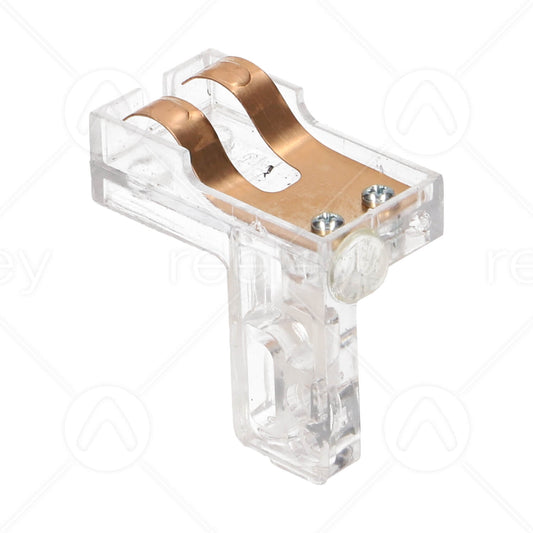

TIEFFE

Contact Piece

Part Number: 69603

£20.00

Dimensions:

40mm Long x 37mm Wide x 22mm Deep

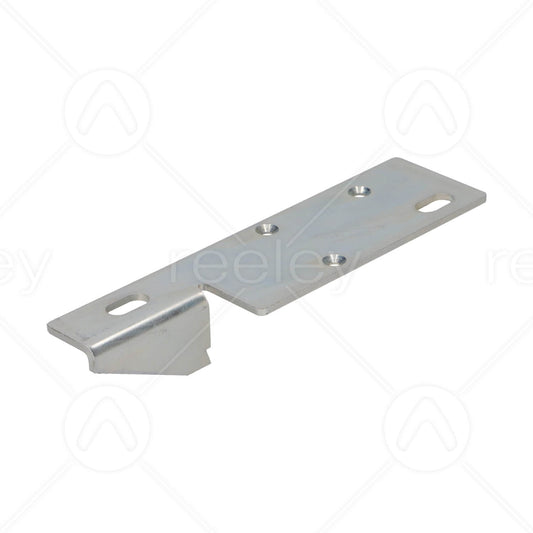

OTIS

Contact Support Bracket to Suit Prima Door Lock

Part Number: 20374

£45.00

Dimensions:

185mm Long x 30mm Wide x 50mm Deep

IGV

Coupling Roller

Part Number: 33019

£8.50

Dimensions:

25mm OD x 16mm Wide x 12.5mm ID

SCHINDLER

Cover for QKS11 Lock

Part Number: 77033

£55.00

Dimensions:

184mm Long x 92mm Wide

KRONENBERG

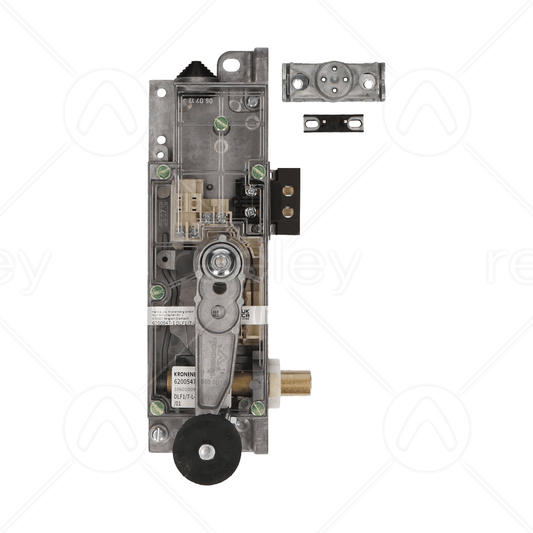

DLF1 -L-X25(u).20.6.9/01 Lock (Left Hand)

Part Number: 44213

£240.00

Dimensions:

270mm Long x 80mm Wide x 35mm Deep

KRONENBERG

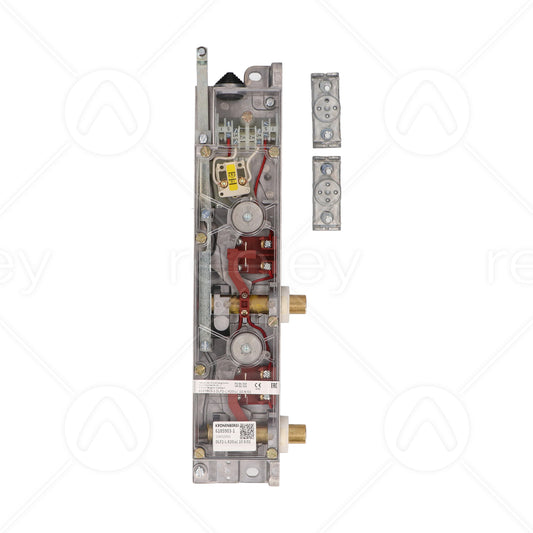

DLF2-L-X20(U).10.9/01 Lock (Left Hand)

Part Number: 44206

£325.00

Dimensions:

410mm Long x 80mm Wide x 35mm Deep

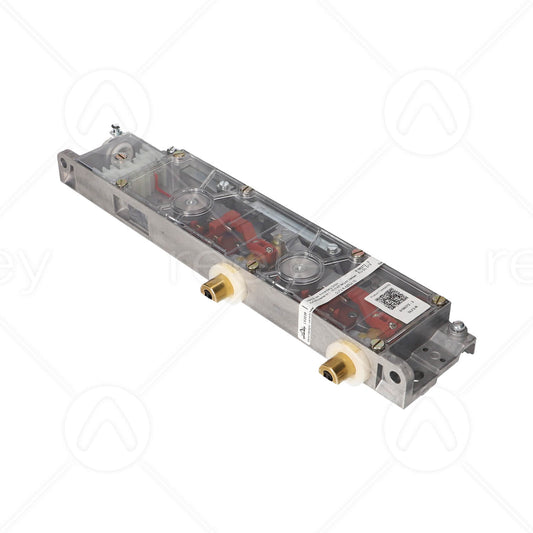

KRONENBERG

DLF2-R-X20(U).10.9/01 Lock (Right Hand)

Part Number: 44207

£315.00

Dimensions:

390mm Long x 80mm Wide x 35mm Deep

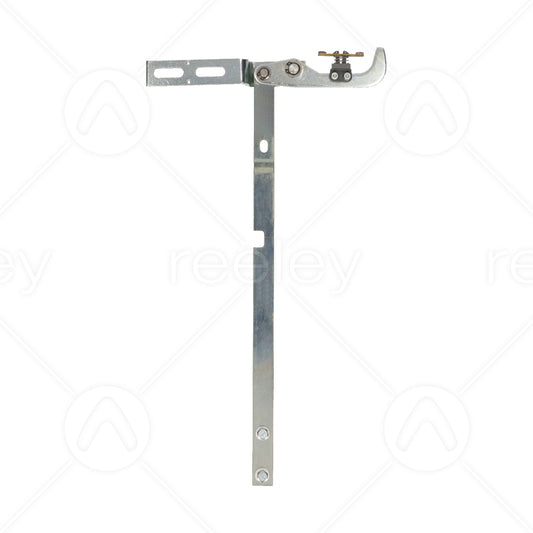

SCHINDLER

Door Contact Latch QKS9 (Left Hand)

Part Number: 70722

£45.00

Dimensions:

412mm Long x 230mm Wide x 31mm Deep

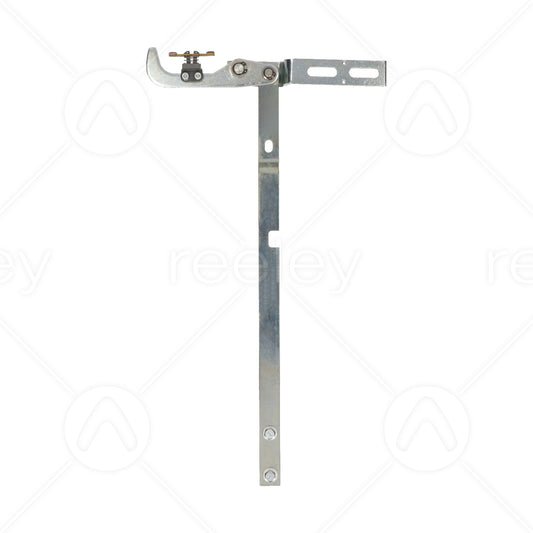

SCHINDLER

Door Contact Latch QKS9 (Right Hand)

Part Number: 70723

£45.00

Dimensions:

412mm Long x 230mm Wide x 31mm Deep

MEILLER

Door Interlock (IP20) (Left Hand)

Part Number: 66546

£425.00

Dimensions:

215mm Long x 135mm Wide x 36.5mm Deep

MEILLER

Door Interlock (IP20) (Right Hand)

Part Number: 66545

£425.00

Dimensions:

215mm Long x 135mm Wide x 36.5mm Deep

GAL

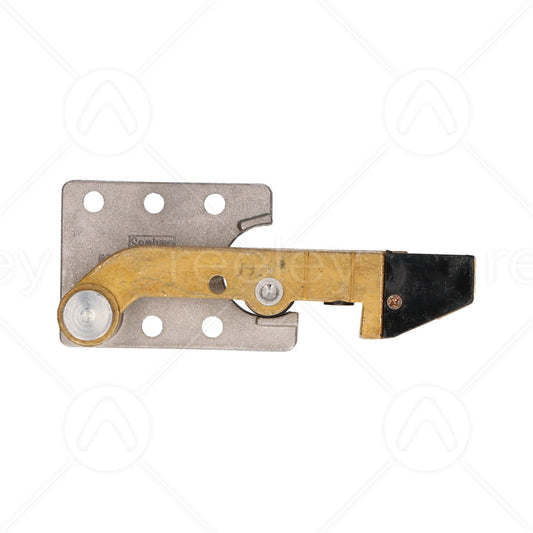

Door Keeper Type MO (Left Hand)

Part Number: 12975

£80.00

Dimensions:

150mm Long x 60mm Wide

GAL

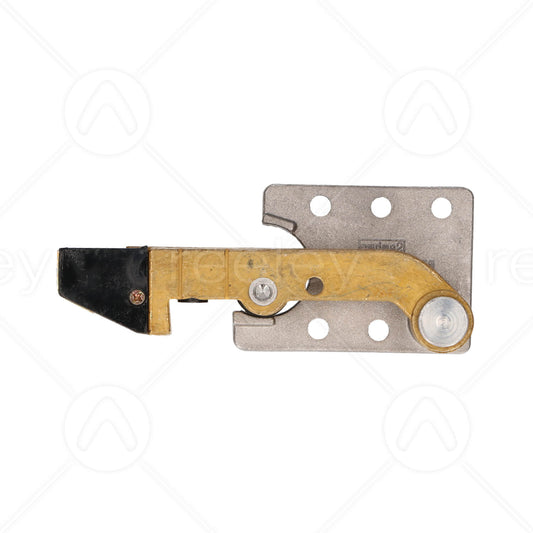

Door Keeper Type MO (Right Hand)

Part Number: 12976

£80.00

Dimensions:

150mm Long x 60mm Wide

MITSUBISHI

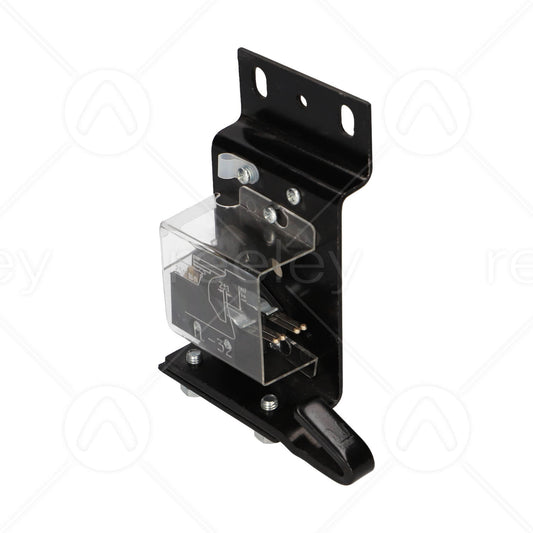

Door Lock

Part Number: 44807

£55.00

Dimensions:

150mm Long x 125mm Wide x 64mm Deep

SCHINDLER

Door Lock (Left & Centre)

Part Number: 77046

£425.00

Dimensions:

268mm Long x 90mm Wide x 32mm Deep

THYSSEN

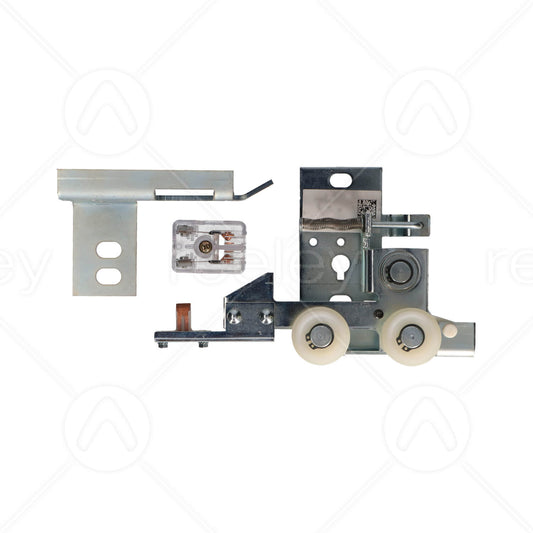

Door Lock (Left Hand)

Part Number: 19160

£205.00

PRISMA

Door Lock (Left Hand)

Part Number: 79738

£155.00

Dimensions:

Bracket - 160mm Long x 88mm Wide x 41mm Deep
Rollers - 50mm OD x 14mm Wide x 12mm ID

SCHINDLER

Door Lock (Right & Centre)

Part Number: 77047

£425.00

Dimensions:

268mm Long x 90mm Wide x 32mm Deep

THYSSEN

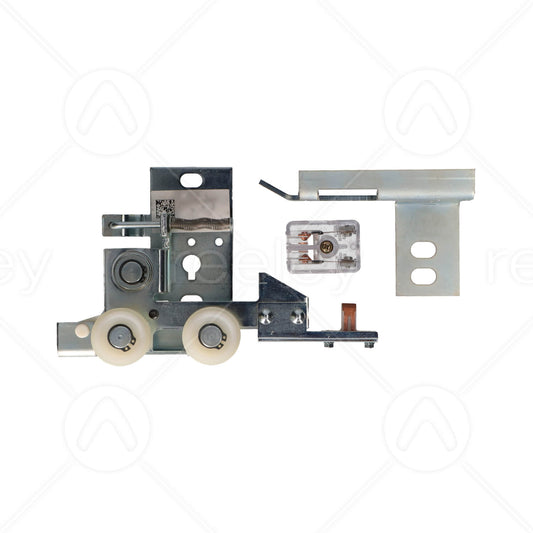

Door Lock (Right Hand)

Part Number: 19161

£205.00

Dimensions:

Door Lock - Right Hand

PRISMA

Door Lock (Right Hand)

Part Number: 79739

£155.00

Dimensions:

Bracket - 160mm Long x 88mm Wide x 41mm Deep
Rollers - 50mm OD x 14mm Wide x 12mm ID

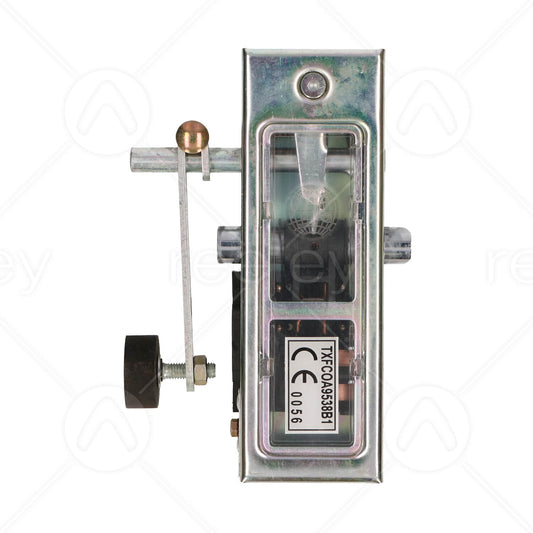

OTIS

Door Lock - Type 9538 SPSPO (Left Hand)

Part Number: 20648

£475.00

Dimensions:

203mm Long x 67mm x 38mm Deep

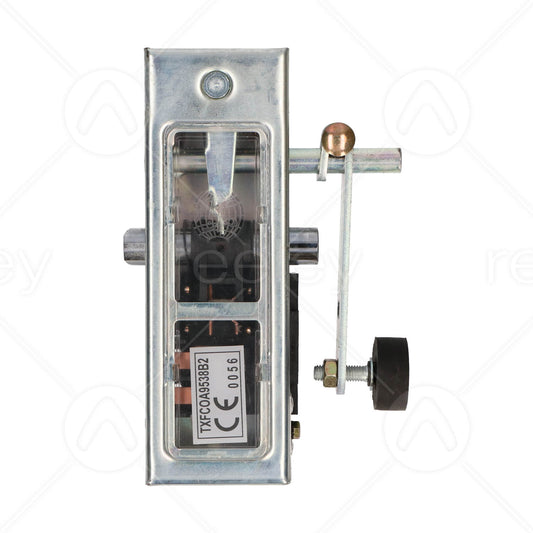

OTIS

Door Lock - Type 9538 SPSPO (Right Hand)

Part Number: 20649

£475.00

Dimensions:

203mm Long x 67mm x 38mm Deep

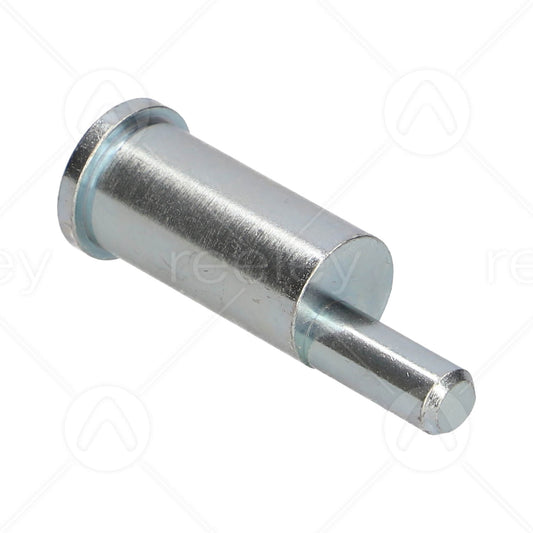

OTIS

Part Number: 20160

£25.00

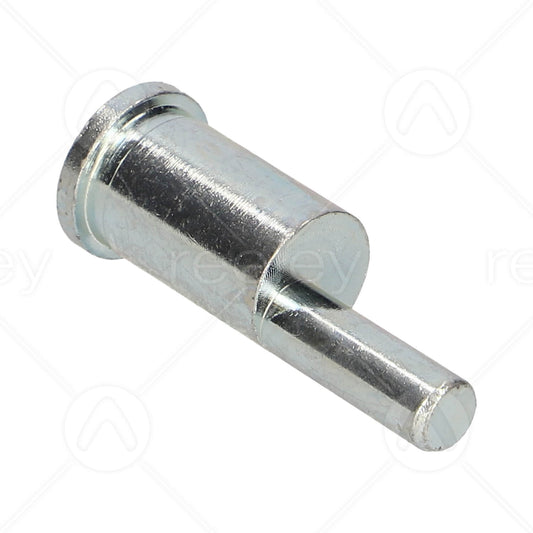

OTIS

Part Number: 20162

£25.00

OTIS

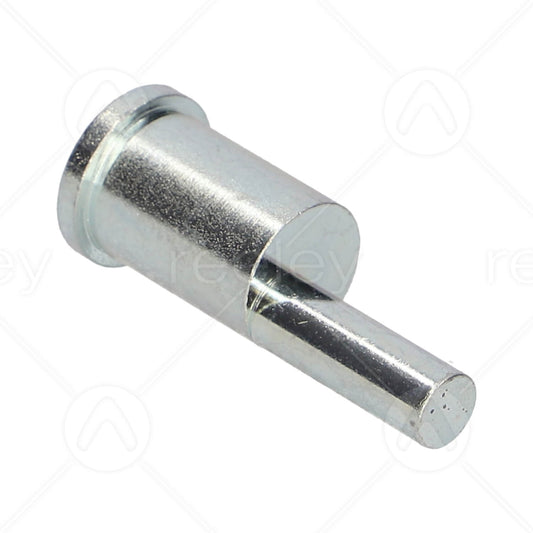

Part Number: 20161

£25.00

Dimensions:

Pin - 9.5mm OD x 27mm L
Shaft - 19mm OD x 26.36mm L
Head - 22mm OD x 3mm L

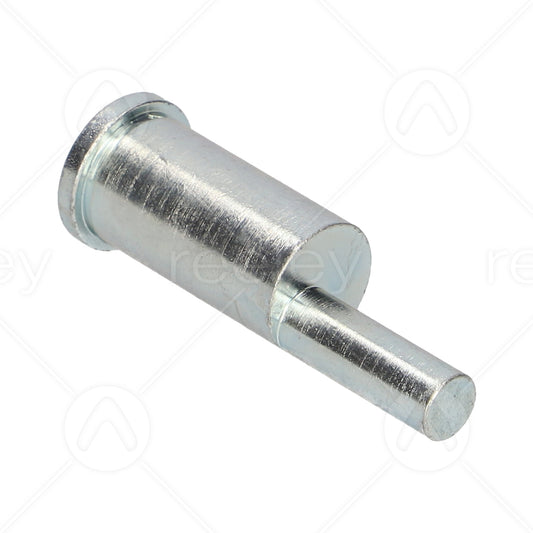

OTIS

Part Number: 20163

£30.00

Dimensions:

Pin - 9.5mm OD x 27mm L
Shaft - 19mm OD x 35.88mm L
Head - 22mm OD x 3mm L

PRISMA

Door Lock Arm Complete with Rollers (Right & Centre Hand)

Part Number: 79712

£165.00

PRISMA

Door Lock Arm Complete with Rollers (Right Hand)

Part Number: 79715

£75.00

KONE

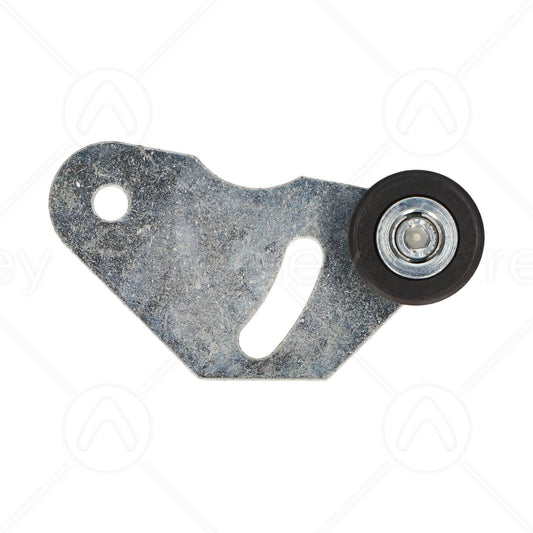

Door Lock Arm with Roller (Left Hand)

Part Number: 11213

£19.50

Dimensions:

97mm Long x 56mm Wide x 31mm Deep

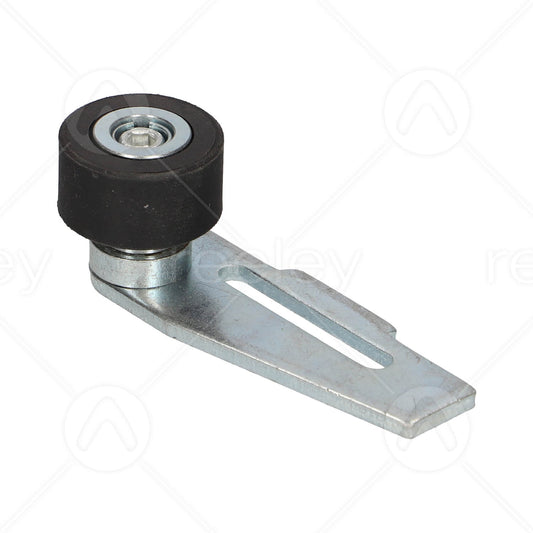

KONE

Door Lock Arm with Roller (Left Hand)

Part Number: 11214

£18.00

Dimensions:

85mm Long x 32.75mm Wide x 33mm Deep

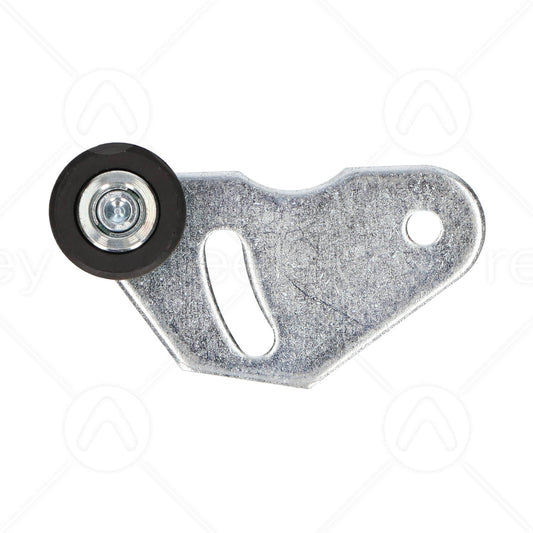

KONE

Door Lock Arm with Roller (Right Hand)

Part Number: 11211

£19.50

Dimensions:

97mm Long x 56mm Wide x 31mm Deep

KONE

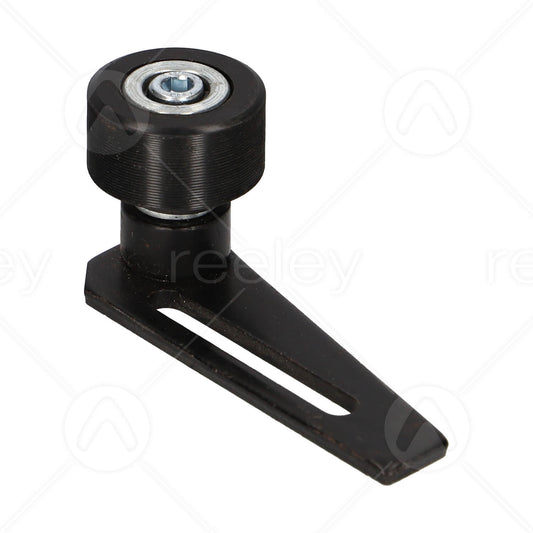

Door Lock Arm with Roller (Right Hand)

Part Number: 11212

£18.00

Dimensions:

85mm Long x 30mm Wide x 39mm Deep

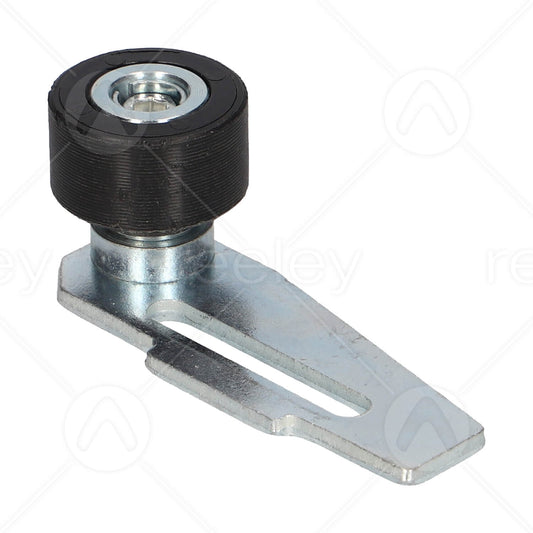

KONE

Door Lock Arm with Roller (Right Hand)

Part Number: 11014

£18.00

PRISMA

Door Lock Arm with Rollers (Left Hand)

Part Number: 79710

£35.00

PRISMA

Door Lock Arm with Rollers (Left Hand)

Part Number: 79713

£165.00

PRISMA

Door Lock Arm with Rollers (Left Hand)

Part Number: 79716

£75.00

PRISMA

Door Lock Arm with Rollers (Right Hand)

Part Number: 79711

£35.00

SEMATIC

Door Lock Assembly (Left Hand)

Part Number: 44058

£200.00

Dimensions:

265mm Long x 235mm Wide x 80mm Deep

PRISMA

Door Lock Assembly (Left Hand)

Part Number: 79746

£120.00

Dimensions:

240mm Long x 113mm Wide x 67mm Deep

SEMATIC

Door Lock Assembly (Right Hand)

Part Number: 44059

£200.00

Dimensions:

265mm Long x 235mm Wide x 80mm Deep

PRISMA

Door Lock Assembly (Right Hand)

Part Number: 79747

£120.00

Dimensions:

240mm Long x 113mm Wide x 67mm Deep

DOPPLER

Door Lock Bracket

Part Number: 59960

£15.00

Dimensions:

84mm Long x 40mm Wide with 4mm Thick Steel

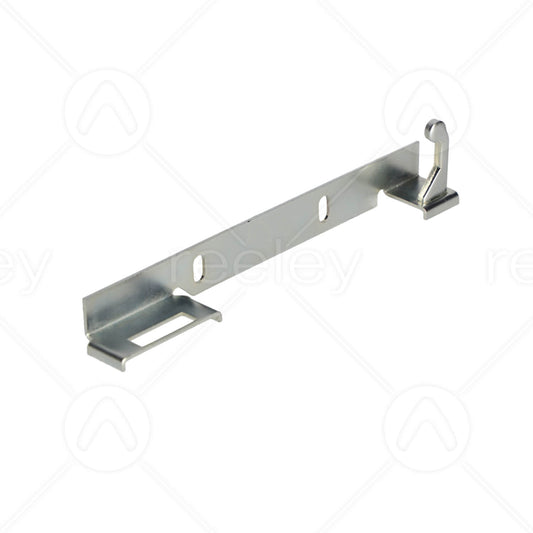

OTIS

Door Lock Bracket/Holder (9538) (Right Hand)

Part Number: 20363

£45.00

Dimensions:

159.5mm Long x 18mm Wide x 21mm Deep

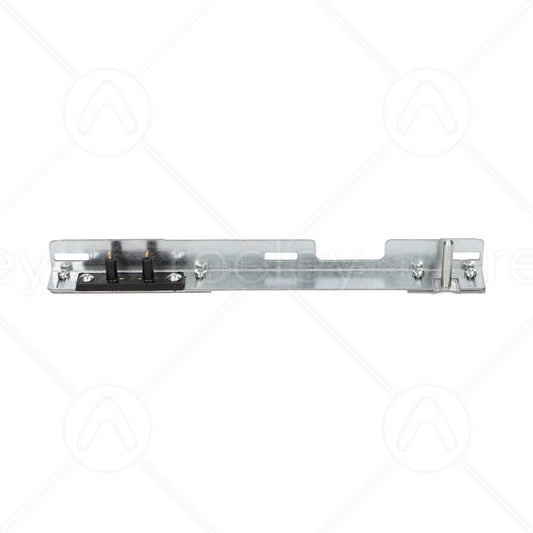

Electrometal

Door Lock Bridge Support

Part Number: 86002

£40.00

Dimensions:

202mm Long x 17mm Wide x 17mm Deep

DOPPLER

Door Lock Buffer

Part Number: 59990

£9.00

Dimensions:

26mm OD x 8mm Wide x 8mm ID

MITSUBISHI

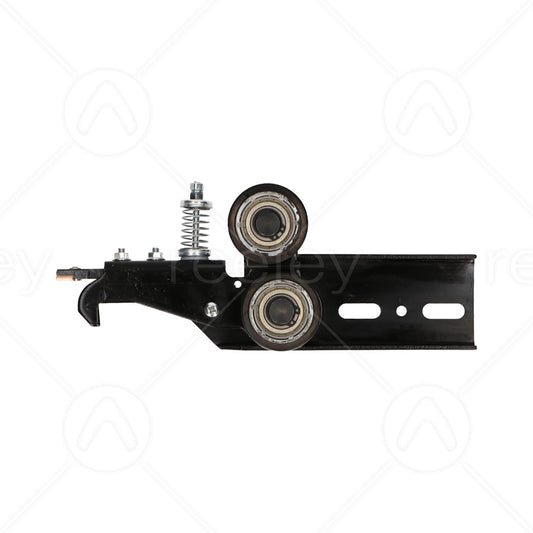

Door Lock Hook

Part Number: 44808

£40.00

Dimensions:

250mm Long x 100mm Wide x 55mm Deep
Rollers - 45mm OD x 13mm Wide x 15mm ID

ELEX

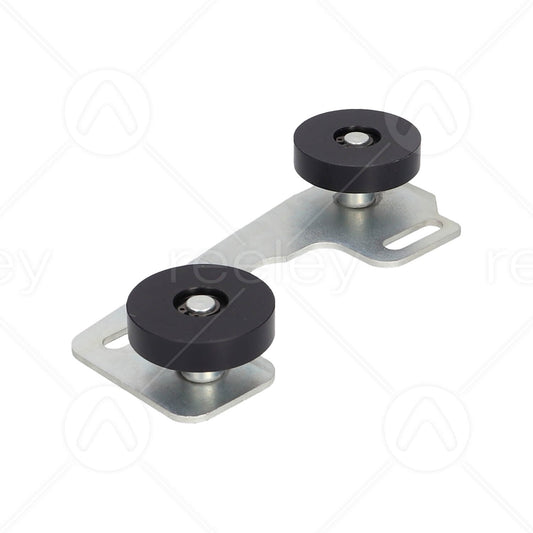

Door Lock Lever (Left Hand)

Part Number: 44505

£110.00

Dimensions:

176mm Long x 89mm Wide with 2 x 50mm OD Rollers

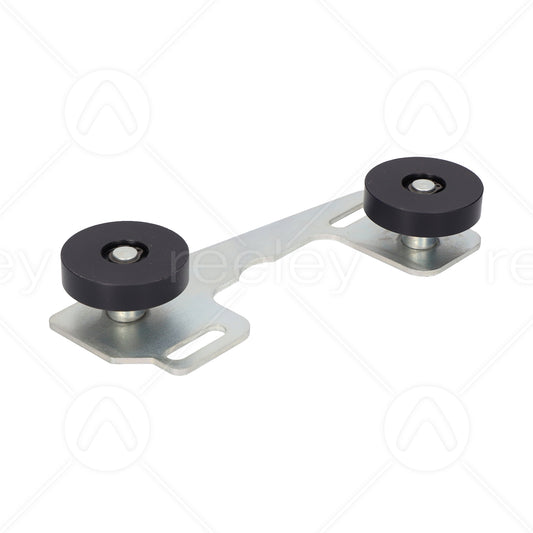

ELEX

Door Lock Lever (Right Hand)

Part Number: 44506

£110.00

Dimensions:

176mm Long x 89mm Wide with 2 x 50mm OD Rollers

PRISMA

Door Lock Lever with 2 x Lock Rollers (Left Hand)

Part Number: 79698

£48.00

Dimensions:

170.5mm Long x 107mm Wide

PRISMA

Door Lock Lever with 2 x Lock Rollers (Right Hand)

Part Number: 79697

£48.00

Dimensions:

170.5mm Long x 107mm Wide

THYSSEN

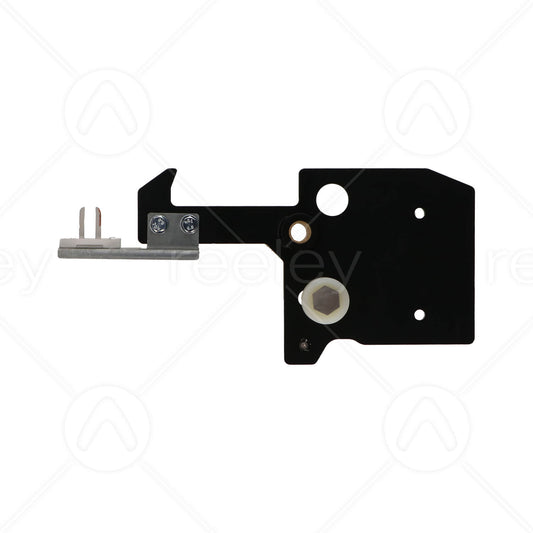

Door Lock M2TS6 (Left Hand)

Part Number: 19166

£120.00

Dimensions:

280mm Long x 130mm Wide

THYSSEN

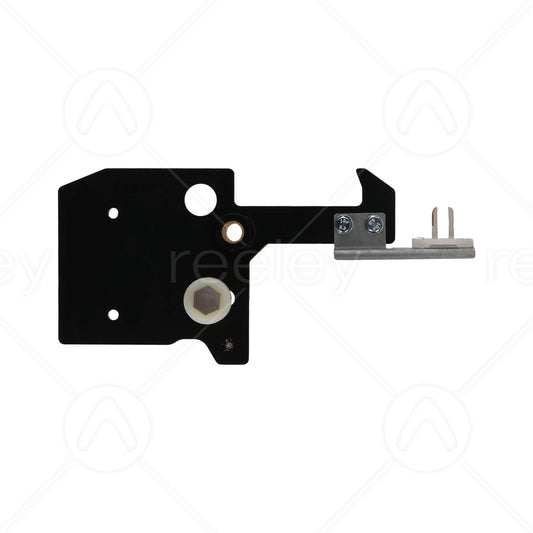

Door Lock M2TS6 (Right Hand)

Part Number: 19169

£120.00

Dimensions:

280mm Long x 130mm Wide

SCHINDLER

Door Lock P23K Euro

Part Number: 79005

£95.00

OTIS

Door Lock Roller

Part Number: 20359

£15.00

Dimensions:

29.5mm OD x 6mm ID x 8.5mm Width (including shoulder)

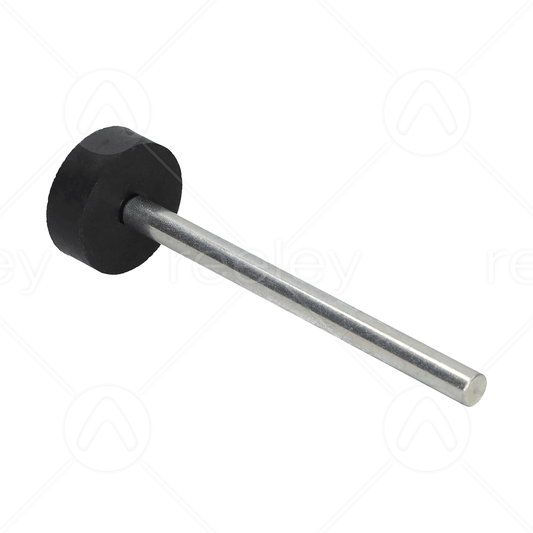

KRONENBERG

Door Lock Roller & Pin

Part Number: 44215

£25.00

KRONENBERG

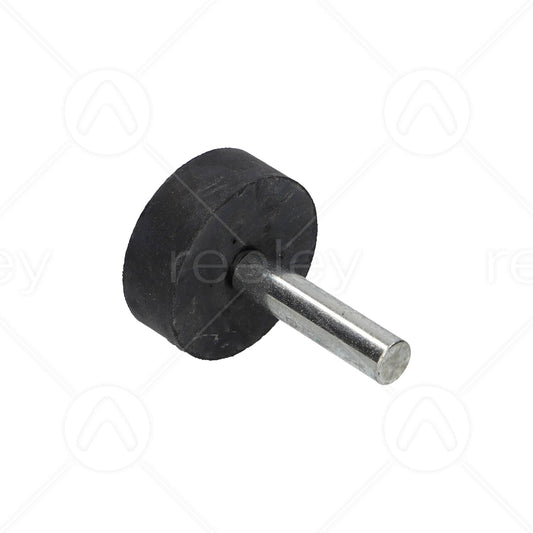

Door Lock Roller & Pin Only

Part Number: 44216

£12.00

Dimensions:

Roller: 41.5mm OD x 15mm Wide
Pin: 42mm Long x 10mm OD
Total Length: 60mm

KONE

Door Lock Roller Buffer

Part Number: 11112

£3.00

Dimensions:

33mm OD x 8.5mm Wide x 8mm ID

SEMATIC

Door Lock Roller with M10 Eccentric Pin

Part Number: 44042

£30.00

Dimensions:

40mm OD x 15mm Wide with M10 Eccentric Pin
Total Length - 44mm

THYSSEN

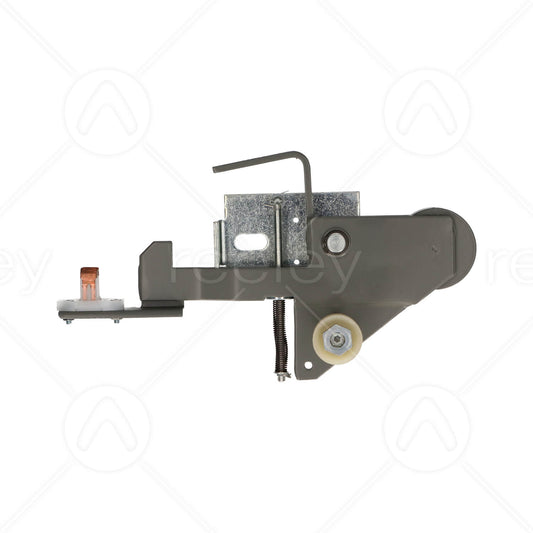

Door Lock S4 (Left & Centre Hand)

Part Number: 19187

£850.00

Dimensions:

254mm Long x 141mm Wide

THYSSEN

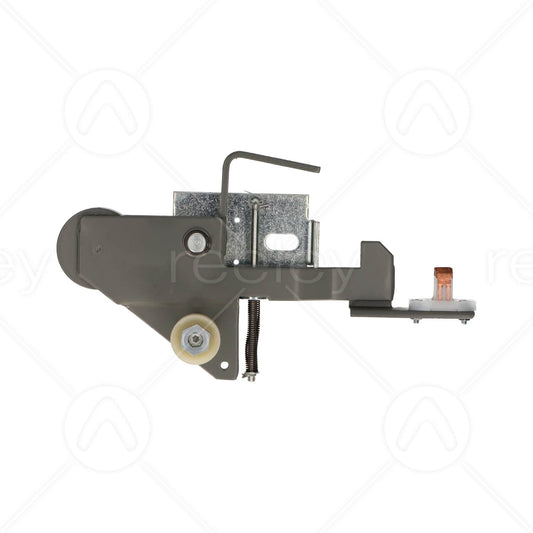

Door Lock S4 (Right & Centre Hand)

Part Number: 19186

£850.00

Dimensions:

254mm Long x 141mm Wide

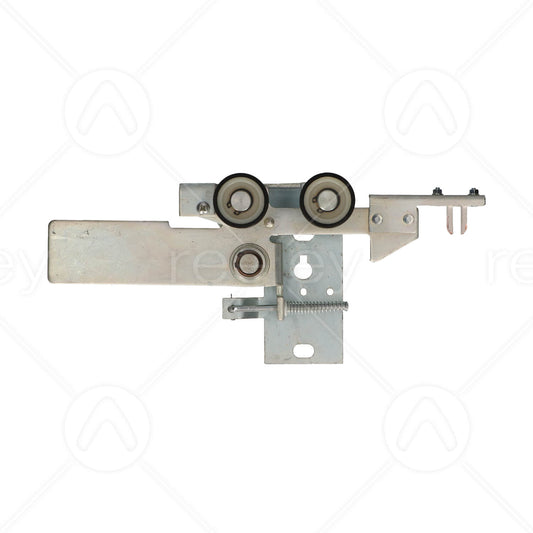

THYSSEN

Door Lock S8 (Left Hand)

Part Number: 19201

£175.00

THYSSEN

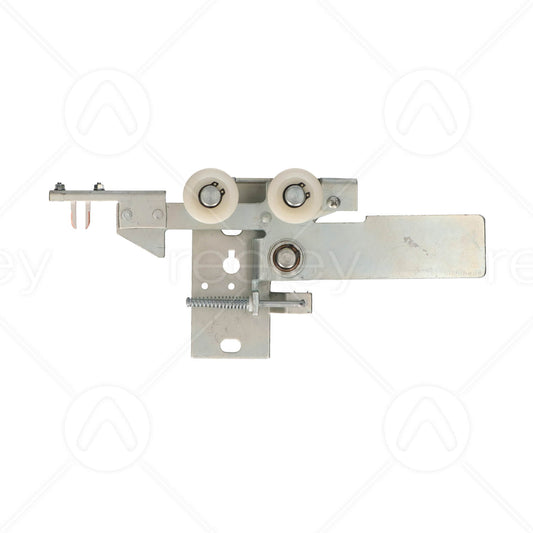

Door Lock S8 (Right Hand)

Part Number: 19202

£175.00

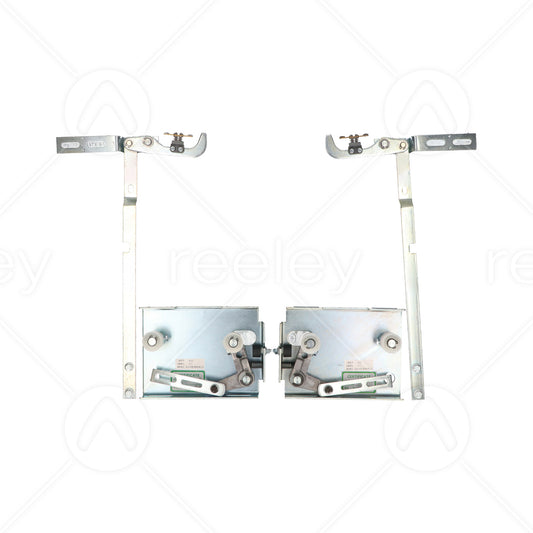

SCHINDLER

Door Lock Set QKS9

Part Number: 70719

£210.00

GAL

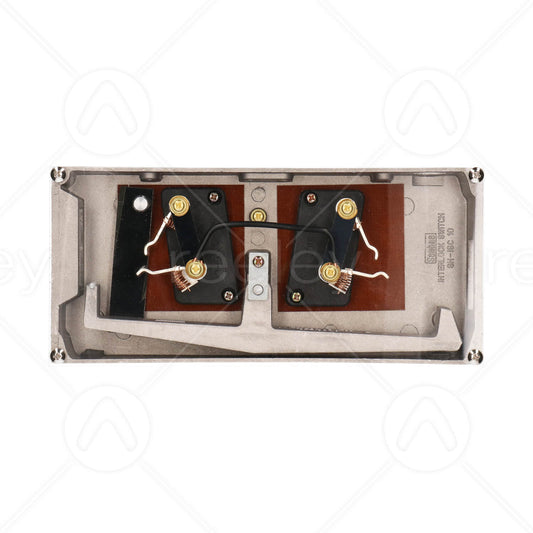

Door Lock Switch (Centre Opening)

Part Number: 12988

£220.00

Dimensions:

245mm Long x 112mm Wide x 40mm Deep

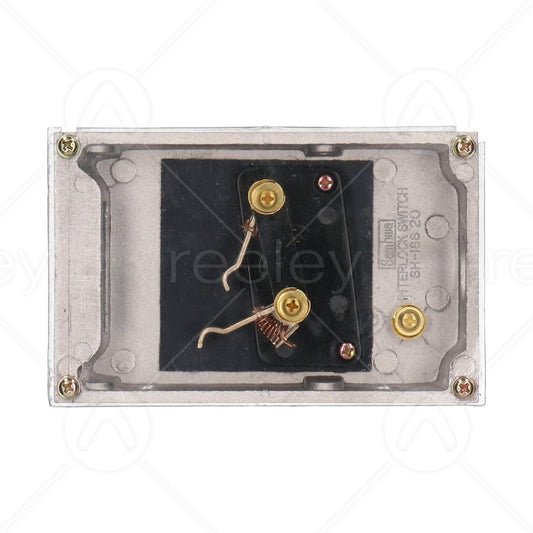

GAL

Door Lock Switch (Left Hand)

Part Number: 12987

£115.00

Dimensions:

142mm Long x 90mm Wide x 36mm Deep

GAL

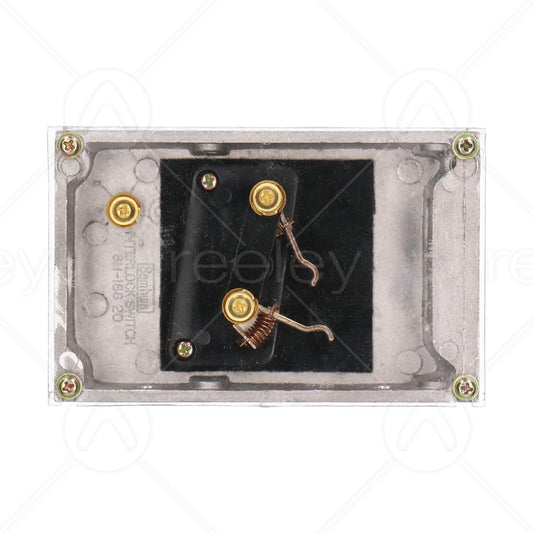

Door Lock Switch (Right Hand)

Part Number: 12986

£115.00

Dimensions:

142mm Long x 90mm Wide x 36mm Deep

SCHINDLER

Door Lock T82 (Left Hand)

Part Number: 77052

£75.00

Dimensions:

255mm Long x 112mm Wide x 62mm Deep

SCHINDLER

Door Lock T82 (Right Hand)

Part Number: 77062

£75.00

Dimensions:

255mm Long x 112mm Wide x 62mm Deep

MEILLER

Door Lock TMV2-V (IP20) (Left Hand)

Part Number: 66525

£250.00

Dimensions:

217mm Long x 130mm Wide x 52.5mm Deep

MEILLER

Door Lock TMV2-V (IP20) (Right Hand)

Part Number: 66526

£250.00

Dimensions:

217mm Long x 130mm Wide x 52.5mm Deep

FERMATOR

Door Lock to Suit 40/10

Part Number: 19015

£225.00

Dimensions:

245mm Long x 95mm Wide

SCHINDLER

Door Lock to Suit Varidor 30 (Left Hand)

Part Number: 79008

£565.00

Dimensions:

279.5mm Long x 208mm Wide

SCHINDLER

Door Lock to Suit Varidor 30 (Right Hand)

Part Number: 79009

£565.00

Dimensions:

279.5mm Long x 208mm Wide

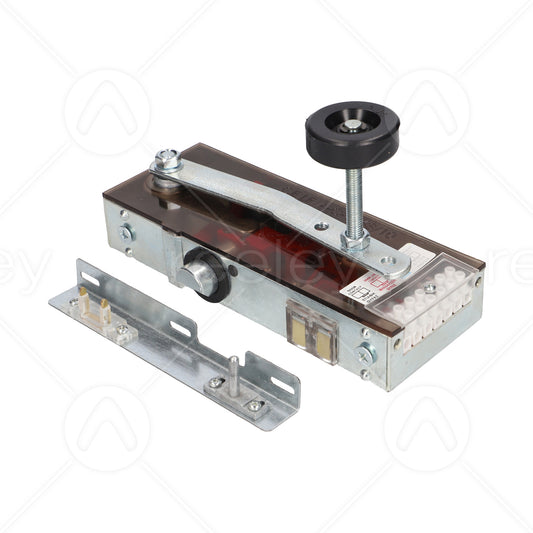

Electrometal

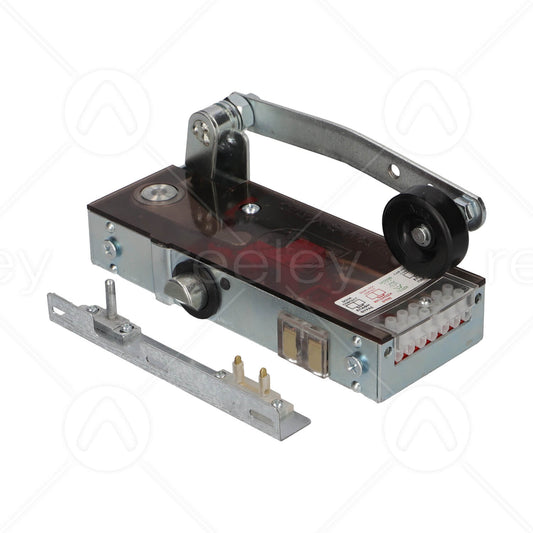

Door Lock Type H (TH)

Part Number: 86000

£250.00

Dimensions:

196mm Long x 74mm Wide x 35mm Deep with 171mm Long Arm with 42.5mm OD Roller

Electrometal

Door Lock Type H (TH)

Part Number: 86001

£250.00

SCHINDLER

Door Lock Varidor 30 (Left Hand)

Part Number: 70753

£130.00

Dimensions:

270mm Long x 215mm Wide

SCHINDLER

Door Lock Varidor 30 (Right Hand)

Part Number: 70751

£130.00

Dimensions:

270mm Long x 215mm Wide

SCHINDLER

Door Lock with Contact Latch QKS9 (Left Hand)

Part Number: 70720

£120.00

Dimensions:

140mm High x 190mm Wide x 53mm Deep

SCHINDLER

Door Lock with Contact Latch QKS9 (Right Hand)

Part Number: 70721

£120.00

Dimensions:

140mm High x 190mm Wide x 53mm Deep

ALJO

Door Lock with Front Arm (Left Hand)

Part Number: 18172

£135.00

Dimensions:

172mm Long x 90mm Wide x 30mm Deep

ALJO

Door Lock with Front Arm (Right Hand)

Part Number: 18175

£135.00

Dimensions:

172mm Long x 90mm Wide x 29mm Deep

ALJO

Door Lock with Side Arm (Left Hand)

Part Number: 18170

£155.00

Dimensions:

172mm Long x 90mm Wide x 29mm Deep

ALJO

Door Lock with Side Arm (Right Hand)

Part Number: 18171

£160.00

Dimensions:

172mm Long x 90mm Wide x 29mm Deep

THYSSEN

Door Panel Coupler

Part Number: 19185

£65.00

THYSSEN

Door Panel Coupler with Rollers (Left Hand)

Part Number: 19164

£52.00

THYSSEN

Door Panel Coupler with Rollers (Right Hand)

Part Number: 19165

£52.00

GAL

Door Release Assembly - MOH Horizontal (Left Hand)

Part Number: 12965

£32.00

Dimensions:

145mm Long x 90mm Wide

GAL

Door Release Assembly - MOH Horizontal (Right Hand)

Part Number: 12966

£32.00

Dimensions:

145mm Long x 90mm Wide

GAL

Door Release Assembly - MOM Vertical (Left Hand)

Part Number: 12985

£75.00

Dimensions:

145mm Long x 96mm Wide x 67mm Deep

GAL

Door Release Assembly - MOM Vertical (Right Hand)

Part Number: 12984

£75.00

Dimensions:

145mm Long x 96mm Wide x 67mm Deep

HAMMOND & CHAMPNESS

Dover 4 Piece Nylon Bush Set - DC-68

Part Number: 11308

£7.50

EXPRESS

Drive Block Assembly

Part Number: 16161

£400.00

Dimensions:

215mm Long x 180mm Wide

IGV

Emergency Unlocking Bolt (Centre Opening)

Part Number: 32941

£42.00

Dimensions:

245mm Long x 40mm Wide

IGV

Emergency Unlocking Bolt Side Opening (Left Hand)

Part Number: 32942

£42.00

Dimensions:

247mm Long x 40mm Wide

IGV

Emergency Unlocking Bolt Side Opening (Right Hand)

Part Number: 32943

£42.00

Dimensions:

247mm Long x 40mm Wide

SELCOM

Felt & Clip

Part Number: 32043

£4.00

Dimensions:

50.5mm Long x 20mm Wide x 35mm Deep

FERMATOR

Fermator Lock FERM/CRJ-GRL0S000

Part Number: 18908

£330.00

DUPAR / DEWHURST

FL16 Lock & Beak (Left Hand)

Part Number: 17680

£1,200.00

DUPAR / DEWHURST

FL16 Lock & Beak (Right Hand)

Part Number: 17681

£1,200.00

DUPAR / DEWHURST

FL16 Lock Wiring

Part Number: 17669

£25.00

Dimensions:

25mm OD x 1850mm Long

SEMATIC

Flexible Door Lock Buffer

Part Number: 44070

£3.50

Dimensions:

20mm Height x 19mm OD x 9.5mm ID

OTIS

Flexible Lock Arm Bumper

Part Number: 20274

£9.50

Dimensions:

25mm Long x 9mm Wide x 15mm Deep

GAL

Gal Lower Linkage Arm

Part Number: 13076

£90.00

GAL

Gate Switch Type G Complete

Part Number: 13014

£140.00

Dimensions:

129mm Long x 76mm Wide x 36mm Deep

PRUDHOMME

GV Lock Deadbolt Bush

Part Number: 45005

£18.00

Dimensions:

69mm Long x 26mm Wide x 29.5mm Deep

FIAM

Hanger Arm & Roller (Left Hand)

Part Number: 88498

£17.00

FIAM

Hanger Arm & Roller (Right Hand)

Part Number: 88499

£17.00

FERMATOR

Horizontal Sliding Drive Wheel

Part Number: 18712

£20.00

Dimensions:

40mm OD x 16.75mm with M10 x 21mm Pin

OTIS

Interlock Assembly (Left Hand)

Part Number: 20159

£400.00

Dimensions:

227mm Long x 166.5mm Wide x 35mm Deep

OTIS

Interlock Assembly (Right Hand)

Part Number: 20158

£400.00

Dimensions:

227mm Long x 166.5mm Wide x 35mm Deep

DOVER, HAMMOND & CHAMPNESS

Interlock Assembly I-68 (Left Hand)

Part Number: 11318

£325.00

Dimensions:

148mm Long x 80mm Wide x 41mm Deep

HAMMOND & CHAMPNESS, DOVER

Interlock Assembly I-68 (Right Hand)

Part Number: 11319

£325.00

Dimensions:

148mm Long x 80mm Wide x 41mm Deep

MACPUARSA

Interlock Assembly Massen T2 (Left Hand)

Part Number: 29951

£175.00

Dimensions:

270mm Long x 31mm Wide x 110mm Deep

MACPUARSA

Interlock Assembly Massen T2 (Right Hand)

Part Number: 29952

£175.00

Dimensions:

270mm Long x 31mm Wide x 110mm Deep

DOVER, HAMMOND & CHAMPNESS

Interlock Beak Assembly with Fixings & 2 Piece Nylon Bush Set

Part Number: 11299

£40.00

Dimensions:

168mm Long x 43mm Wide x 27mm Deep

MACPUARSA

Interlock Bracket for Massen C2

Part Number: 29935

£160.00

Dimensions:

290mm Long x 77mm Wide x 31mm Deep

MEILLER

Interlock Latch Clip

Part Number: 66499

£5.00

Dimensions:

100mm Long x 28mm Wide x 5mm Thick

OTIS

Part Number: 20257

£8.00

Dimensions:

38mm OD x 38mm Wide x 19mm ID
Shoulder - 28mm OD x 11mm Deep

OTIS

Part Number: 20255

£8.00

Dimensions:

38mm OD x 32mm Wide x 19mm ID
Shoulder - 28mm OD x 5mm Deep

OTIS

Part Number: 20267

£8.00

Dimensions:

38mm OD x 27mm Wide x 15mm ID
Shoulder - 24mm OD x 2mm Deep

MACPUARSA
