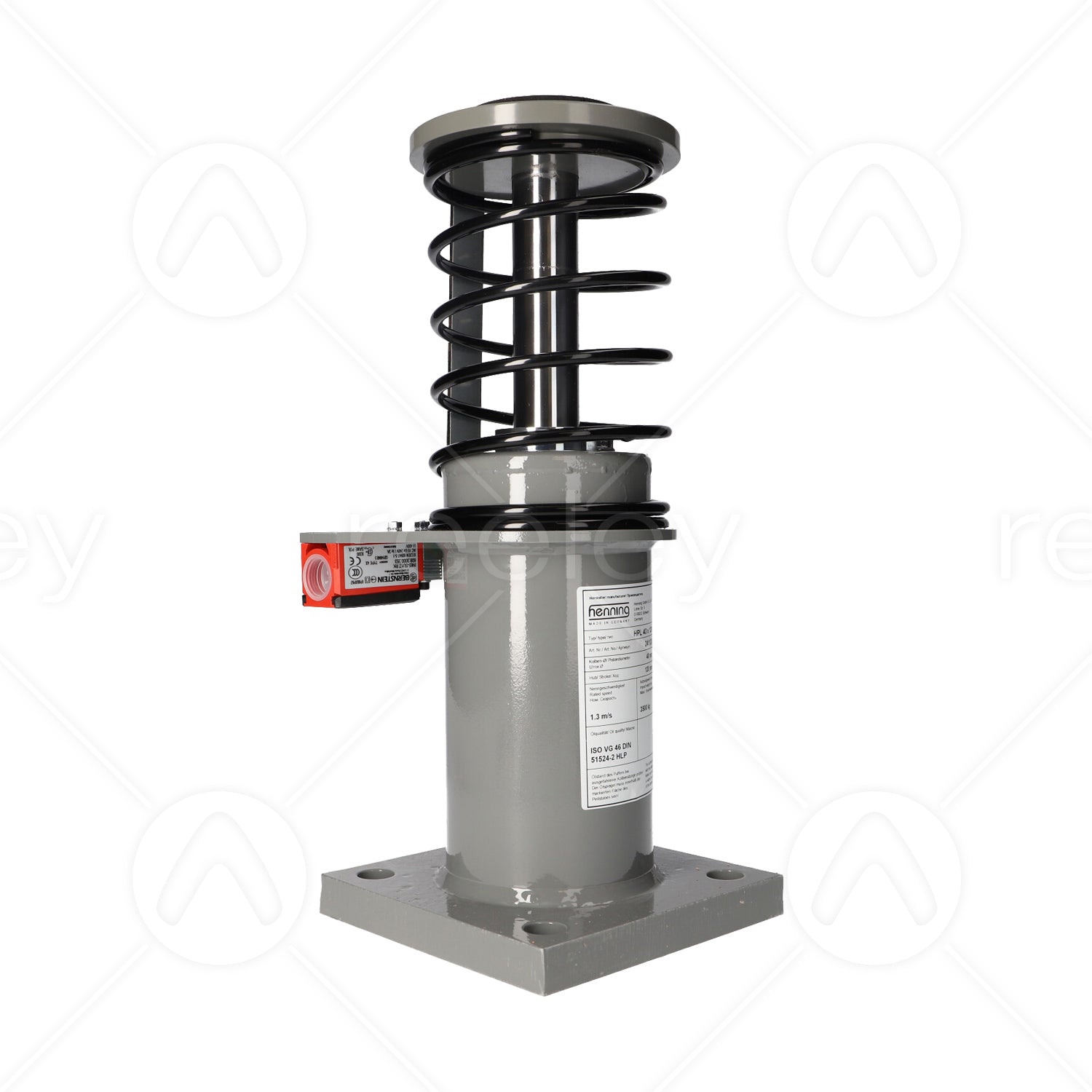

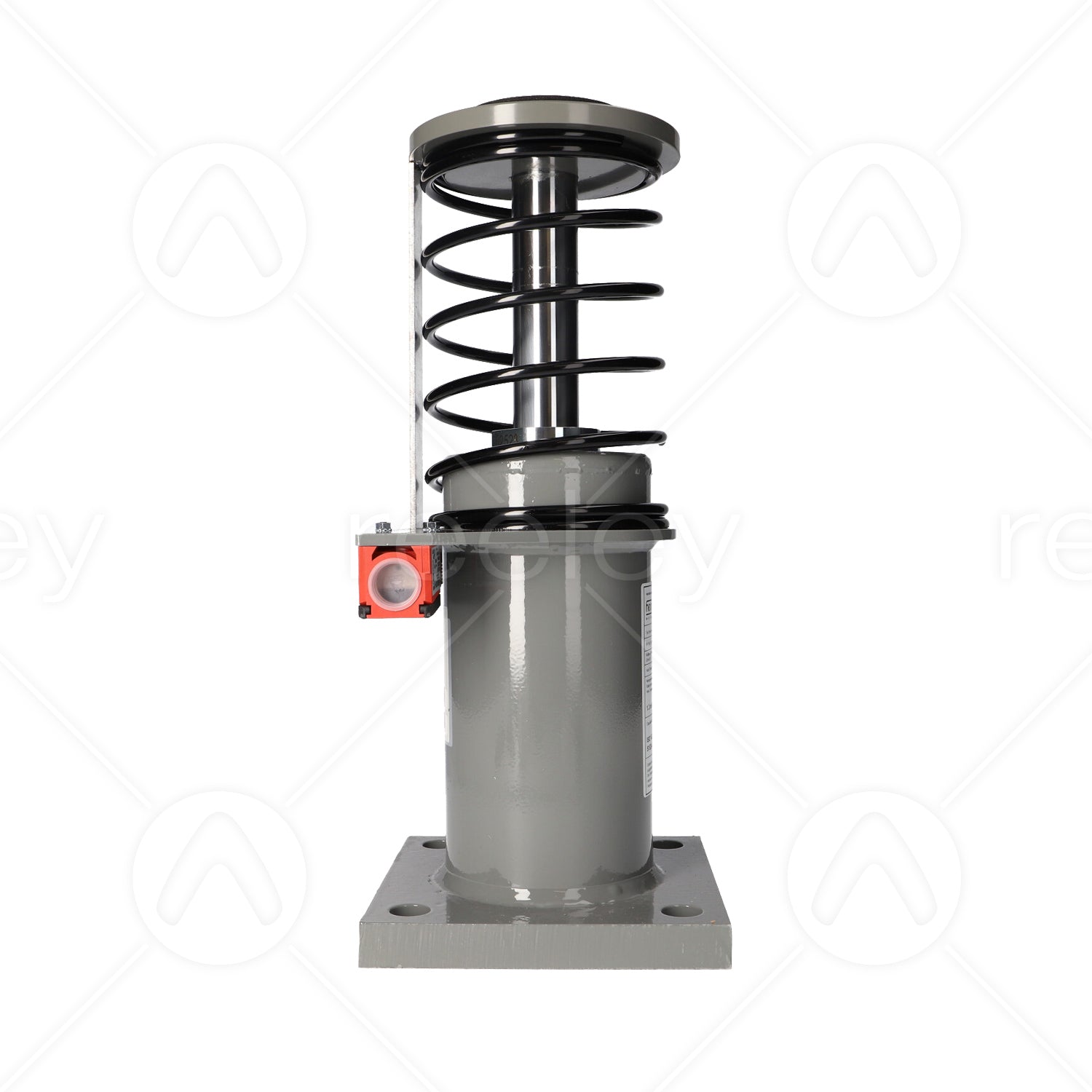

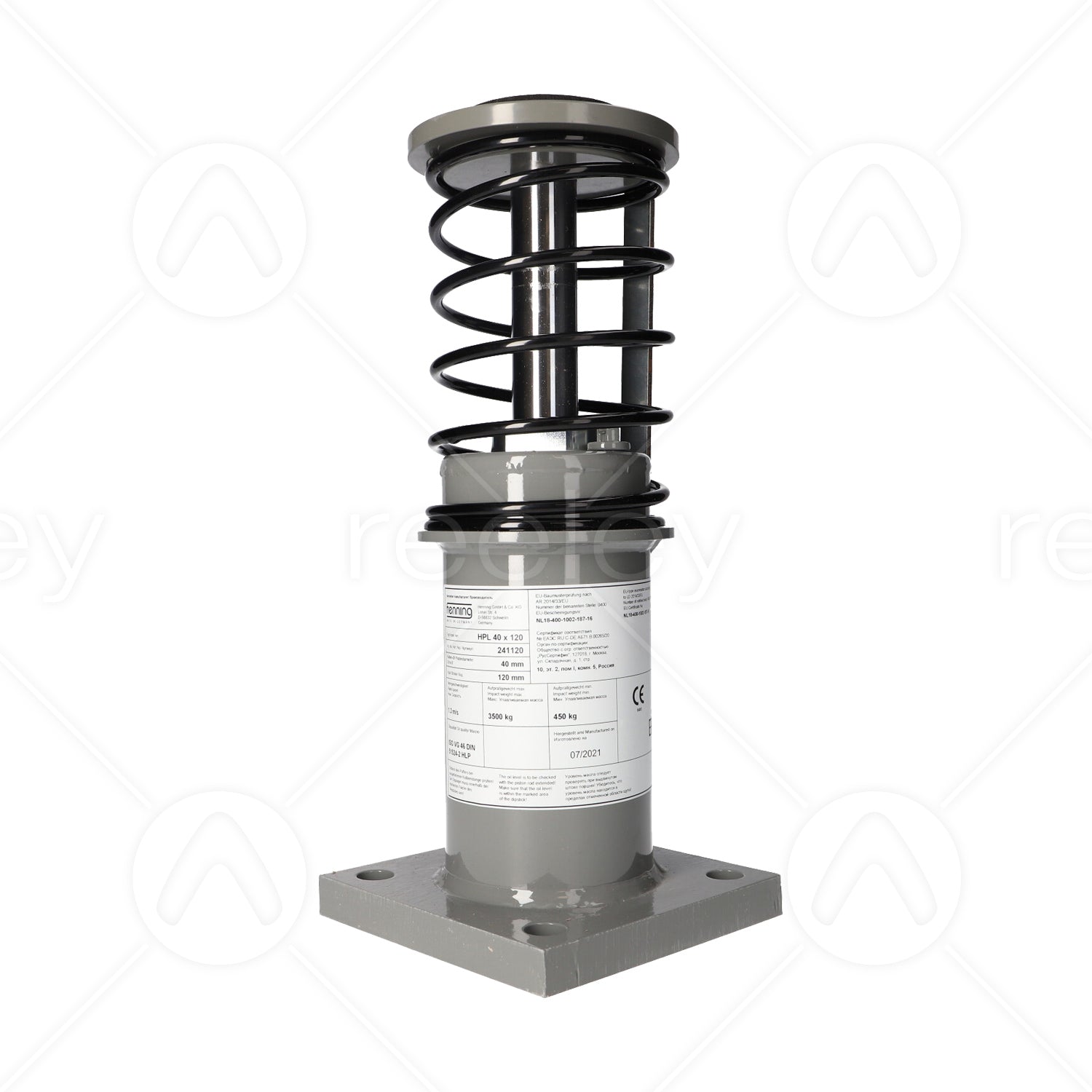

Hydraulic Buffer H12
£350.00
Download Datasheet
Dimensions:

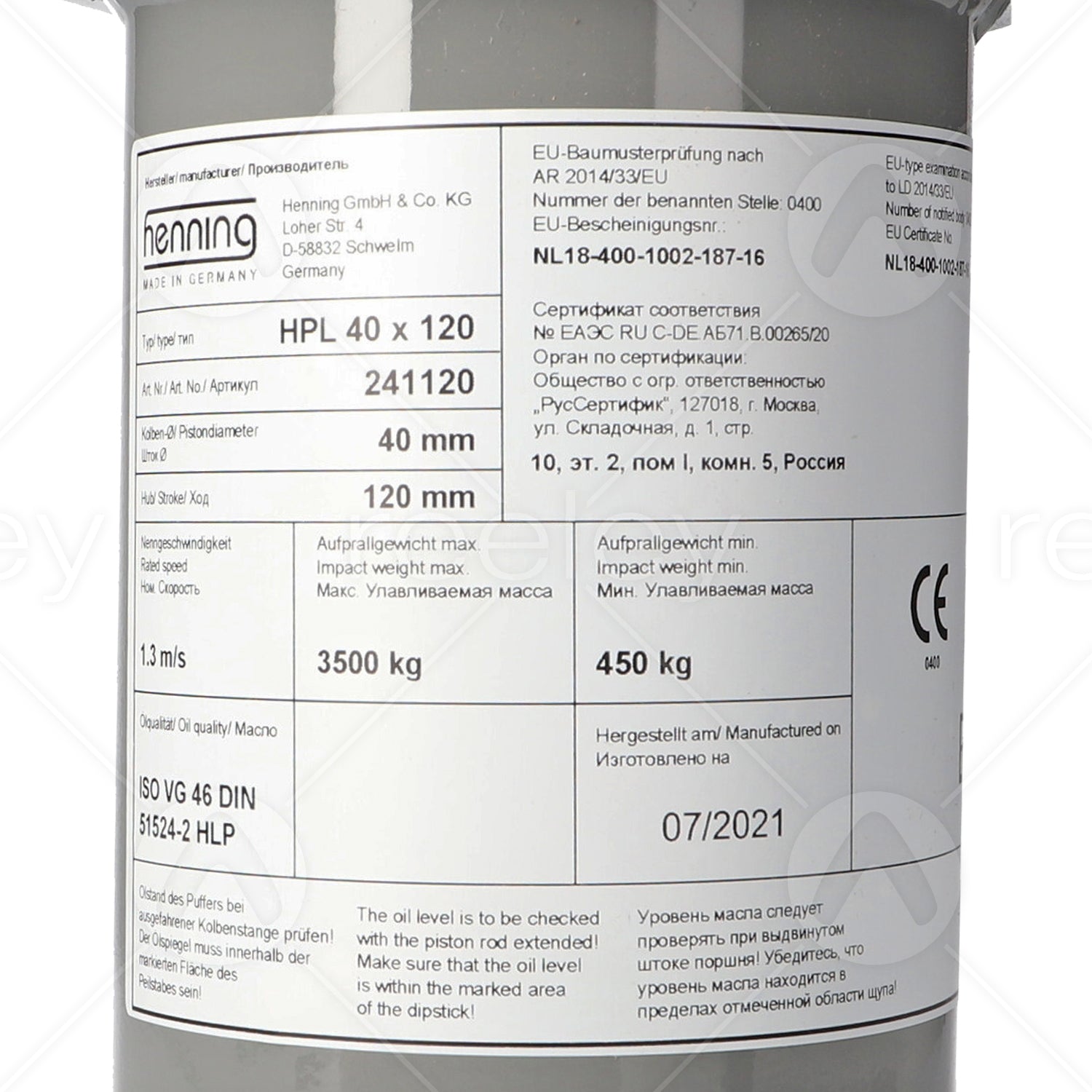

40mm OD x 120mm Piston Length x 385mm High
Comments: Hydraulic System with Switch for Lifts up to 1.3 m/s Nominal Speed, According to EN 81 - 20/50 : 2014, EN 81 - 1/2 1998+A3; 2009
With Operation Bar Conformal to AR 2014/33/EU (valid from 20.04.2016)
Load Range 450kg - 3500kg
H11 (305mm High) Available Part No. HB4080
H13 (495mm High) Available Part No. HB4175
H14 (715mm High) Available Part No. HB4275
H15 (1122mm High) Available Part No. HB4430
